ZB1054-AED - COILCRAFT

Description: Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 300kHz Surface Mount

Download ZB1054-AED Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

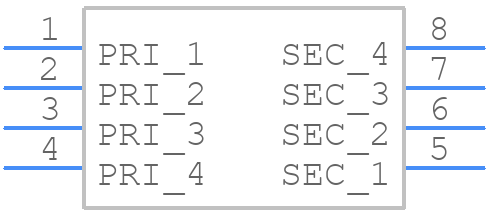

ZB1054-AED - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
ZB1054-AED - COILCRAFT PCB footprint - Other - Other - ZB1054-AED-1
click to zoom
3D Models
ZB1054-AED - COILCRAFT - 3D model - Other - ZB1054-AED-1
click to zoom

ZB1054-AED Details

  • Manufacturer Part Number:

    ZB1054-AED

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.33

  • Additional Feature:

    LENGTH AND HEIGHT DIMENSION INCLUDE TERMINAL ALSO

  • Approvals:

    AEC-Q200

  • Height:

    10 mm

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    4 V

  • Length:

    13.21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Operating Frequency-Max:

    300 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    24 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Power Rating:

    8.4 W

  • Primary Inductance:

    12.5 µH

  • Surface Mount:

    YES

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    10.92 mm
