ZCYS51R5-M6PT-01 - TDK

ZCYS51R5-M6PT-01 Frequently Asked Questions (FAQs)

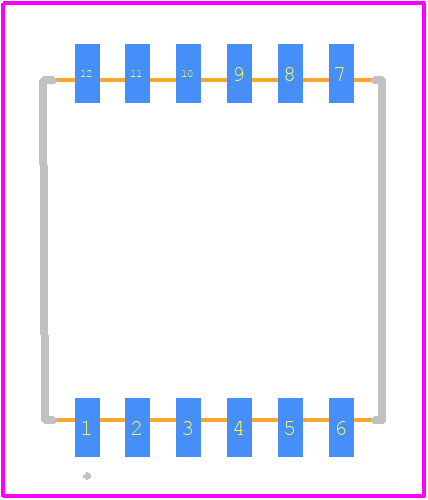

• What is the recommended land pattern for the ZCYS51R5-M6PT-01?
  The recommended land pattern for the ZCYS51R5-M6PT-01 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
• How do I handle the ZCYS51R5-M6PT-01 during assembly to prevent damage?
  Handle the ZCYS51R5-M6PT-01 by the edges to prevent damage to the component. Avoid touching the component's leads or body to prevent electrostatic discharge (ESD) damage. Use an ESD wrist strap or mat if possible.
• What is the maximum operating temperature range for the ZCYS51R5-M6PT-01?
  The maximum operating temperature range for the ZCYS51R5-M6PT-01 is -40°C to 125°C. However, it's essential to note that the component's performance may degrade at extreme temperatures, and the operating temperature range may vary depending on the specific application.
• Can I use the ZCYS51R5-M6PT-01 in a high-vibration environment?
  The ZCYS51R5-M6PT-01 is designed to withstand moderate vibration. However, it's essential to evaluate the component's performance in your specific application and consider additional mechanical support or potting if the vibration levels are extreme.
• How do I store the ZCYS51R5-M6PT-01 to maintain its shelf life?
  Store the ZCYS51R5-M6PT-01 in its original packaging or a dry, cool place away from direct sunlight. Avoid exposing the component to moisture, extreme temperatures, or physical stress. Follow the storage guidelines outlined in the TDK Corporation's documentation or the IPC-J-STD-033 standard.
