ZDT6702TA - Diodes Incorporated

Description: Bipolar (BJT) Transistor Array 1 NPN, 1 PNP Darlington (Dual) 60V 1.75A 140MHz 2.75W Surface Mount SM8

Download ZDT6702TA Model

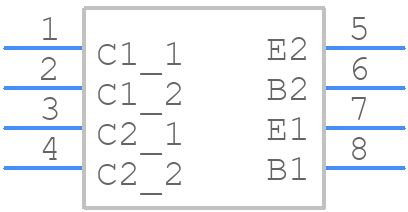

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

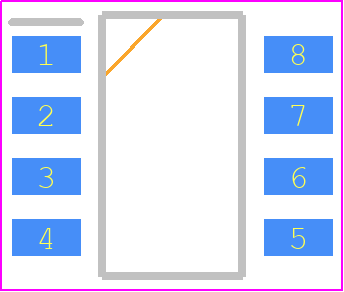

ZDT6702TA - Diodes Incorporated PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - SM-8 (8 LEAD SOT223)_2024
click to zoom
3D Models
ZDT6702TA - Diodes Incorporated  - 3D model - SOT23 (8-Pin) - SM-8 (8 LEAD SOT223)_2024
click to zoom

ZDT6702TA Details

  • Manufacturer Part Number:

    ZDT6702TA

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    SM-8, 8 PIN

  • Pin Count:

    8

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    1

  • Collector Current-Max (IC):

    2 A

  • Collector-Emitter Voltage-Max:

    60 V

  • Configuration:

    2 BANKS, DARLINGTON

  • DC Current Gain-Min (hFE):

    2000

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    150 MHz

ZDT6702TA Frequently Asked Questions (FAQs)

  • A good PCB layout for the ZDT6702TA should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the EN pin to a logic high (e.g., VCC) to enable the device. The VCC pin should be connected to a stable voltage source (e.g., 3.3V or 5V) and the GND pin should be connected to a solid ground plane. Additionally, decouple the VCC pin with a 10uF capacitor to reduce noise and ensure stable operation.
  • The maximum allowable power dissipation for the ZDT6702TA is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 1.4W at an ambient temperature of 25°C. However, this value can be derated based on the actual operating conditions.
  • The ZDT6702TA is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure the device is properly cooled to maintain its performance and lifespan.
  • To troubleshoot issues with the ZDT6702TA, start by verifying the power supply and biasing conditions. Check for proper voltage levels, decoupling, and grounding. Use an oscilloscope to monitor the input and output signals, and verify that they meet the expected specifications. If issues persist, consult the datasheet and application notes for guidance or contact Diodes Incorporated's technical support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZDT6702TA Overview

Use the download button to access the ZDT6702TA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZDT67, or try a keyword search, such as Power Bipolar Transistors

Parts related to ZDT6702TA

Showing 0 results

ZDT6702TA Alternates

Showing results

Image Part Number Model
Part Image ZDT6702TC Diodes Incorporated

Power Bipolar Transistor, 2A I(C), 60V V(BR)CEO, 2-Element, NPN and PNP, Silicon, Plastic/Epoxy, 8 Pin

Part Image ZDT6702 Diodes Incorporated

Power Bipolar Transistor, 1.75A I(C), 60V V(BR)CEO, 2-Element, NPN and PNP, Silicon, Plastic/Epoxy, 8 Pin
