ZDT6790TA - Diodes Incorporated

ZDT6790TA Details

• Manufacturer Part Number:

  ZDT6790TA

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

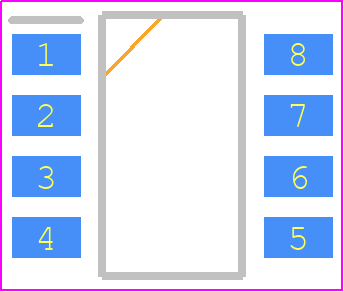

• Package Description:

  SM-8, 8 PIN

• Pin Count:

  8

• Country Of Origin:

  Germany

• ECCN Code:

  EAR99

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Diodes Incorporated

• YTEOL:

  4

• Collector Current-Max (IC):

  2 A

• Collector-Emitter Voltage-Max:

  45 V

• Configuration:

  SEPARATE, 2 ELEMENTS

• DC Current Gain-Min (hFE):

  150

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  NPN AND PNP

• Power Dissipation-Max (Abs):

  2.75 W

• Qualification Status:

  Not Qualified

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON

• Transition Frequency-Nom (fT):

  150 MHz
