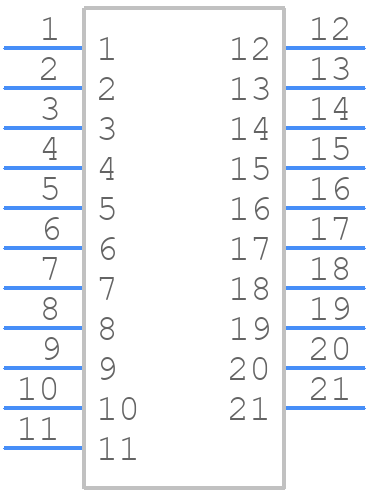

ZF1-21-01-T-WT - SAMTEC

ZF1-21-01-T-WT Details

• Manufacturer Part Number:

  ZF1-21-01-T-WT

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Samtec Inc

• YTEOL:

  7

• Body Breadth:

  0.118 inch

• Body Depth:

  0.275 inch

• Body Length:

  1.095 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Finish Mating:

  MATTE TIN

• Contact Finish Termination:

  Matte Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  15 mΩ

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  650VAC V

• Durability:

  25 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  ZIF N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.039 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Option:

  GENERAL PURPOSE

• Rated Current (Signal):

  4.3 A

• Terminal Pitch:

  1 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  21

• UL Flammability Code:

  94V-2

• Withdrawl Force-Min:

  ZIF N
