ZHB6718TA - Diodes Incorporated

Description: Bipolar (BJT) Transistor Array 2 NPN, 2 PNP (H-Bridge) 20V 2.5A 140MHz 1.25W Surface Mount SM8

Download ZHB6718TA Model

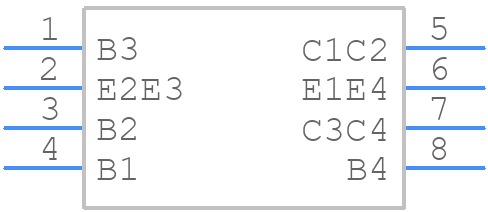

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

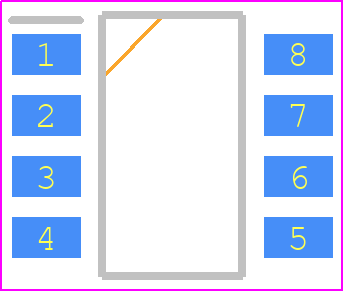

ZHB6718TA - Diodes Incorporated PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - SM-8_2023
click to zoom
3D Models
ZHB6718TA - Diodes Incorporated  - 3D model - SOT23 (8-Pin) - SM-8_2023
click to zoom

ZHB6718TA Details

  • Manufacturer Part Number:

    ZHB6718TA

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SM-8, 8 PIN

  • Pin Count:

    8

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    4

  • Collector Current-Max (IC):

    2.5 A

  • Collector-Emitter Voltage-Max:

    20 V

  • Configuration:

    COMPLEX

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    140 MHz
