ZHB6792TA - Diodes Incorporated

ZHB6792TA Details

• Manufacturer Part Number:

  ZHB6792TA

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

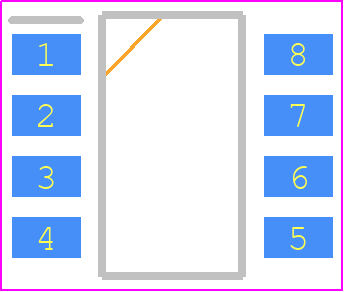

• Package Description:

  SM-8, 8 PIN

• Pin Count:

  8

• Country Of Origin:

  Germany

• ECCN Code:

  EAR99

• Factory Lead Time:

  28 Weeks

• Manufacturer:

  Diodes Incorporated

• YTEOL:

  0

• Collector Current-Max (IC):

  1 A

• Collector-Emitter Voltage-Max:

  70 V

• Configuration:

  BRIDGE, 4 ELEMENTS

• DC Current Gain-Min (hFE):

  150

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  4

• Number of Terminals:

  8

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  NPN AND PNP

• Qualification Status:

  Not Qualified

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON

• Transition Frequency-Nom (fT):

  150 MHz
