ZJYS81R5-2P24T-G01 - TDK

ZJYS81R5-2P24T-G01 Frequently Asked Questions (FAQs)

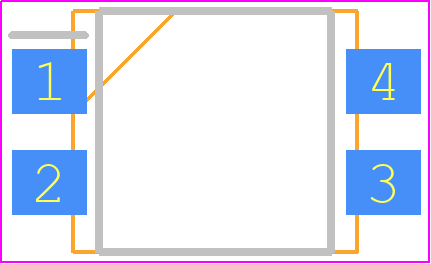

• What is the recommended land pattern for the ZJYS81R5-2P24T-G01?
  The recommended land pattern for the ZJYS81R5-2P24T-G01 can be found in the TDK Corporation's application note or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
• How do I handle the ZJYS81R5-2P24T-G01 during assembly to prevent damage?
  To prevent damage, handle the ZJYS81R5-2P24T-G01 by the body, avoiding touching the pins or the component's electrical contacts. Use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge damage.
• What is the maximum allowable voltage derating for the ZJYS81R5-2P24T-G01?
  The maximum allowable voltage derating for the ZJYS81R5-2P24T-G01 is typically 80% of the rated voltage. However, it is recommended to consult the datasheet or contact TDK Corporation for specific derating guidelines.
• Can I use the ZJYS81R5-2P24T-G01 in a high-temperature environment?
  The ZJYS81R5-2P24T-G01 is rated for operation up to 125°C. However, it is essential to consider the component's power dissipation, thermal resistance, and the PCB's thermal design to ensure reliable operation in high-temperature environments.
• How do I store the ZJYS81R5-2P24T-G01 to maintain its reliability?
  Store the ZJYS81R5-2P24T-G01 in a cool, dry place, away from direct sunlight and moisture. Use anti-static packaging materials and avoid stacking components on top of each other to prevent mechanical stress and electrical damage.
