ZL2006ALNF - Renesas Electronics

Description: The ZL2006 is a digital DC-DC controller with integrated MOSFET drivers. Current sharing allows multiple devices to be connected in parallel to source loads with very high current demands. Adaptive performance optimization algorithms improve power conversion efficiency across the entire load range. Zilker Labs Digital-DC™ technology enables a blend of power conversion performance and power management features. The ZL2006 is designed to be a flexible building block for DC power and can be easily adapted to d

Download ZL2006ALNF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

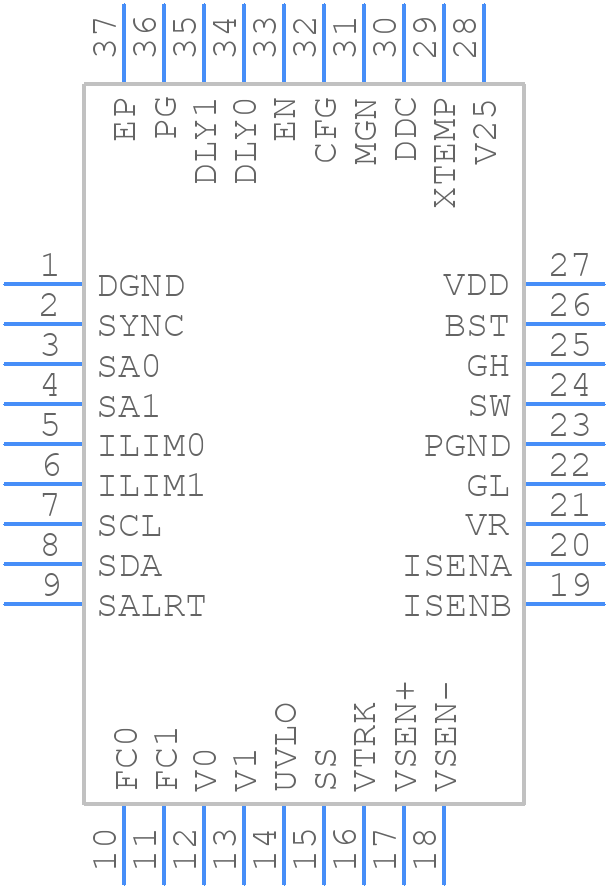

ZL2006ALNF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZL2006ALNF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 37 LEAD QUAD FLAT NO-
click to zoom
3D Models
ZL2006ALNF - Renesas Electronics - 3D model - Quad Flat No-Lead - 37 LEAD QUAD FLAT NO-
click to zoom

ZL2006ALNF Details

  • Manufacturer Part Number:

    ZL2006ALNF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    L36.6X6A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.54 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    50 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1400 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

ZL2006ALNF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN3804EU0100) which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
  • The output capacitor selection depends on the output voltage, output current, and ripple requirements. Renesas recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. A detailed capacitor selection guide is available in the application note (R01AN3804EU0100).
  • The maximum junction temperature (Tj) for the ZL2006ALNF is 150°C. However, it's recommended to operate the device at a lower temperature (typically below 125°C) to ensure reliability and long-term operation.
  • The ZL2006ALNF has a built-in overcurrent protection (OCP) feature that can be enabled by connecting a resistor (Rocp) between the OCP pin and GND. The OCP threshold can be set by selecting the appropriate resistor value according to the datasheet. Additionally, an external OCP circuit can be implemented using a sense resistor and a comparator.
  • Renesas recommends using a low-ESR ceramic capacitor with a minimum capacitance of 4.7uF and a voltage rating of at least 1.5 times the input voltage. A X5R or X7R dielectric type is recommended for its stability over temperature and voltage.
