Description:The ZL2102 is an integrated digital power regulator with auto compensation and power management functions in a small package, resulting in a flexible and integrated solution, which can be configured using the PowerNavigator™ graphical user interface. This synchronous buck converter operates from a 4. 5V to 14V input supply and provides from 0. 54V to 5. 5V output voltage at up to 6A. The ZL2102 can be configured for most applications using only hardware pin straps to adjust switching frequency, output volta
Renesas provides a recommended PCB layout guide in their application note (AN9854) for the ZL2102ALAFTK, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
The ZL2102ALAFTK has a built-in OCP feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides a recommended circuit configuration and calculation formula for setting the OCP threshold.
Although the datasheet doesn't explicitly state the maximum allowed voltage on the EN pin, Renesas recommends keeping it within the range of 0V to VCC (typically 5V) to ensure proper operation and prevent damage to the device.
The ZL2102ALAFTK is rated for operation up to 125°C, but it's essential to consider the device's power dissipation, thermal design, and derating factors when operating in high-temperature environments. Consult the datasheet and application notes for guidance on thermal management.
Renesas provides a troubleshooting guide in their application note (AN9853) that covers common issues with output voltage regulation, such as incorrect output voltage, oscillations, and instability. The guide offers step-by-step procedures for identifying and resolving these issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZL2102ALAFTK Overview

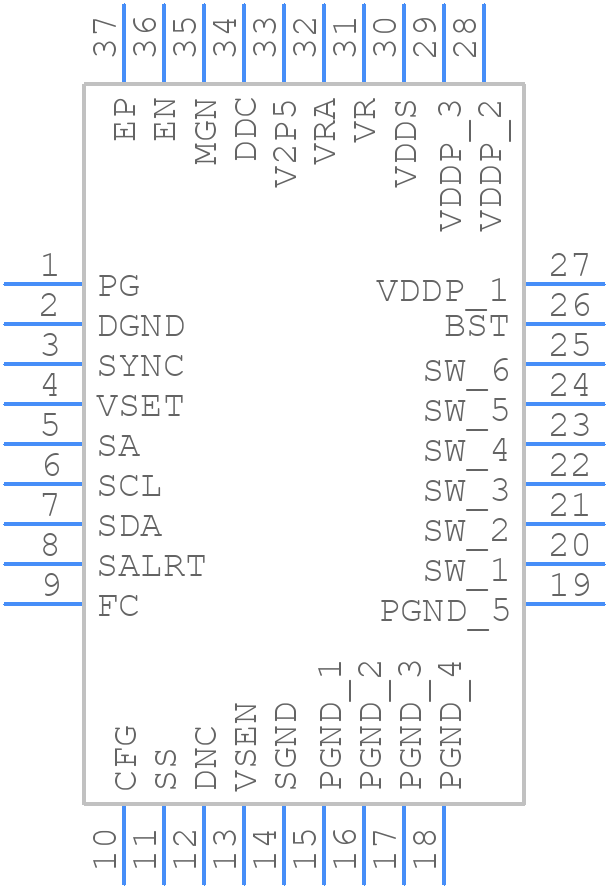

Use the download button to access the ZL2102ALAFTK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZL210,
or try a keyword search, such as Switching Regulator or Controllers
