ZL40226LDG1 - Microchip

Description: Clock Buffer 2:8 LVDS Fanout Buffer w/Ext. Term.

Download ZL40226LDG1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

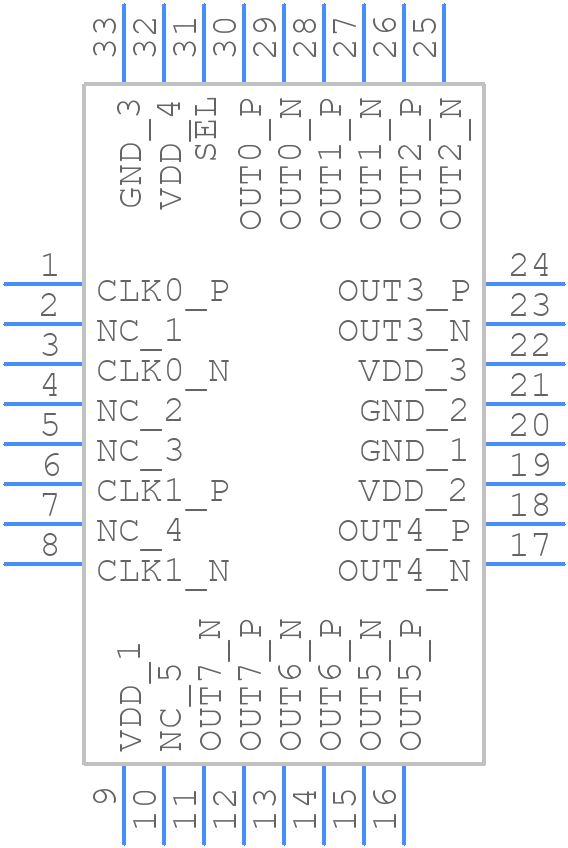

ZL40226LDG1 - Microchip - PCB symbol
click to zoom
PCB Footprints
ZL40226LDG1 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ZL40226LDG1
click to zoom
3D Models
ZL40226LDG1 - Microchip - 3D model - Quad Flat No-Lead - ZL40226LDG1
click to zoom

ZL40226LDG1 Details

  • Manufacturer Part Number:

    ZL40226LDG1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Additional Feature:

    ALSO OPERATES AT 3.3 V SUPPLY

  • Family:

    4000/14000/40000

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    2 ns

  • Same Edge Skew-Max (tskwd):

    0.15 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ZL40226LDG1 Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the ZL40226LDG1 evaluation board user's guide. It's essential to follow the layout guidelines to minimize noise, ensure proper thermal management, and optimize performance.
  • The ZL40226LDG1 is a programmable device. You can configure the output voltage using the I2C interface and the provided software tools, such as the Microchip Power Designer software. The software allows you to set the output voltage, current limit, and other parameters.
  • The ZL40226LDG1 can handle input voltages up to 14V. However, it's recommended to operate the device within the specified input voltage range of 4.5V to 13.2V for optimal performance and reliability.
  • The ZL40226LDG1 has built-in OCP and SCP features. You can configure the OCP and SCP thresholds using the I2C interface and the provided software tools. The device will automatically shut down in case of an overcurrent or short-circuit event.
  • The thermal derating curve for the ZL40226LDG1 is provided in the datasheet. The device's output current capability decreases as the ambient temperature increases. You can use the derating curve to determine the maximum output current at a given temperature.
