The recommended torque for the screws on the ZLTMM-105-71-F-D-745 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the ZLTMM-105-71-F-D-745 connector is designed to withstand high-vibration environments. Samtec's testing shows that it can withstand vibrations up to 20 G's (196 m/s²) in the Z-axis and 10 G's (98 m/s²) in the X- and Y-axes.
The maximum operating temperature of the ZLTMM-105-71-F-D-745 connector is 125°C (257°F) according to Samtec's datasheet.
Yes, the ZLTMM-105-71-F-D-745 connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances and the registration, evaluation, authorization, and restriction of chemicals.
The mating cycle life of the ZLTMM-105-71-F-D-745 connector is 500 cycles minimum according to Samtec's testing and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZLTMM-105-71-F-D-745 Overview

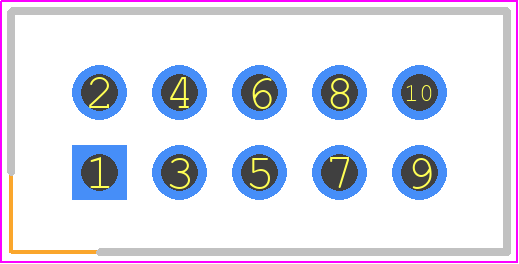

Use the download button to access the ZLTMM-105-71-F-D-745 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZLTMM,
or try a keyword search, such as Headers and Edge Type Connectors
