ZLTMM-107-72-T-D-766 footprint, schematic symbol and 3D model by SAMTEC

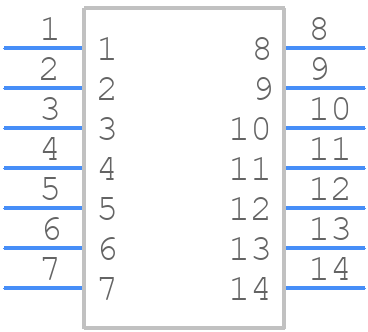

Symbol

click to zoom

PCB Footprints

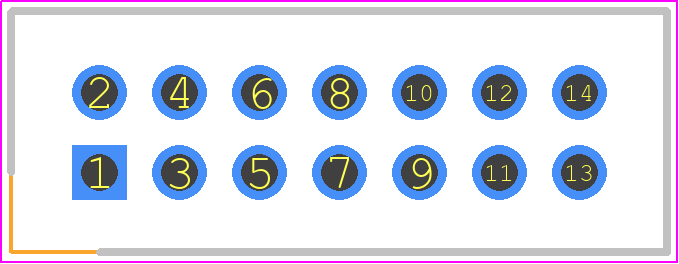

ZLTMM-107-72-T-D-766 - SAMTEC PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - ZLTMM-107-72-T-D-766-+

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ZLTMM-107-72-T-D-766
Part Number ZLTMM-107-72-T-D-766
Manufacturer SAMTEC
Pin Count 14
Part Category Integrated Circuit
Package Category Header, Shrouded - Straight PTH Box
Footprint Name Header, Shrouded - Straight PTH Box - ZLTMM-107-72-T-D-766-+
Released Date May 6, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ZLTMM-107-72-T-D-766 Details

Manufacturer Part Number:
ZLTMM-107-72-T-D-766
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
France, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
8
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
MATTE TIN
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Rated Current (Signal):
3 A
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
14
UL Flammability Code:
94V-0

ZLTMM-107-72-T-D-766 Frequently Asked Questions (FAQs)

The recommended torque for the screws is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.
Yes, the ZLTMM-107-72-T-D-766 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 1, Class B vibration standard.
The operating temperature range of the ZLTMM-107-72-T-D-766 connector is -55°C to 125°C (-65°F to 257°F).
Yes, the ZLTMM-107-72-T-D-766 connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on hazardous substances.
The mating cycle life of the ZLTMM-107-72-T-D-766 connector is 500 cycles minimum, according to Samtec's specifications.

Trust Checks

Community Provided

System Verified

Community Approved

ZLTMM-107-72-T-D-766 Overview

Use the download button to access the ZLTMM-107-72-T-D-766 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ZLTMM, or try a keyword search, such as Headers and Edge Type Connectors

Parts related to ZLTMM-107-72-T-D-766

Showing 0 results

Image	Part Number	Model
	ZLTMM-107-72-L-D-766 Samtec Inc Board Stacking Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal
	ZLTMM-107-72-G-D-766 Samtec Inc Board Stacking Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal
	ZLTMM-107-72-S-D-766 Samtec Inc Board Stacking Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal
For a full list of alternate parts for ZLTMM-107-72-T-D-766, check out Findchips.com
