ZLTMM-110-71-F-D-695 - SAMTEC

Description: Headers & Wire Housings 2.00 mm Shrouded Variable Stack Height Terminal Strip

Download ZLTMM-110-71-F-D-695 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ZLTMM-110-71-F-D-695 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

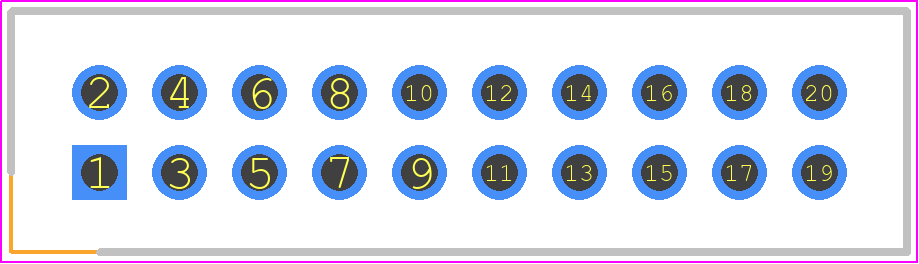

ZLTMM-110-71-F-D-695 - SAMTEC PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - ZLTMM-110-71-F-D-695
