ZLTMM-117-71-TM-D-700 - SAMTEC

Description: Headers & Wire Housings 2.00 mm Shrouded Variable Stack Height Terminal Strip

Download ZLTMM-117-71-TM-D-700 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ZLTMM-117-71-TM-D-700 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

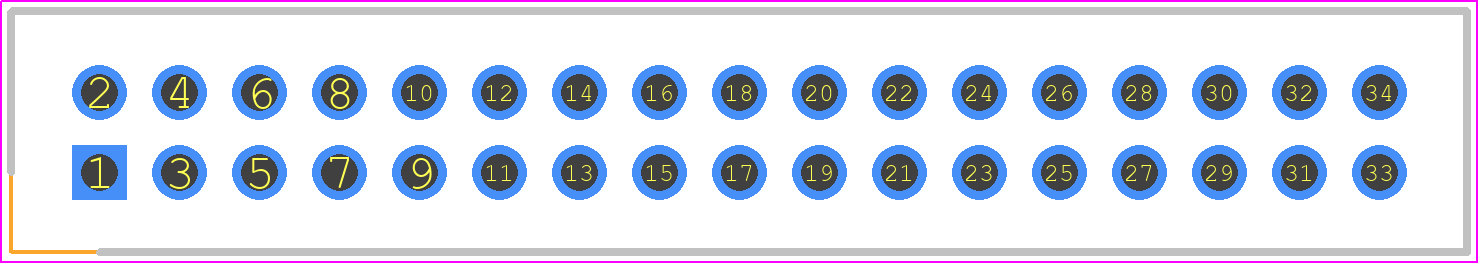

ZLTMM-117-71-TM-D-700 - SAMTEC PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - ZLTMM-117-71-TM-D-700
click to zoom
3D Models
ZLTMM-117-71-TM-D-700 - SAMTEC - 3D model - Header, Shrouded - Straight PTH Box - ZLTMM-117-71-TM-D-700
click to zoom

ZLTMM-117-71-TM-D-700 Details

  • Manufacturer Part Number:

    ZLTMM-117-71-TM-D-700

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 6 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    SHROUDED

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    MATTE TIN

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    34

  • UL Flammability Code:

    94V-0

ZLTMM-117-71-TM-D-700 Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guides first, followed by the contacts. This ensures proper alignment and prevents damage to the connector.
  • Yes, the ZLTMM-117-71-TM-D-700 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with vibration levels up to 20 Gs.
  • The maximum operating temperature for the ZLTMM-117-71-TM-D-700 connector is 125°C (257°F). However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
  • Yes, the ZLTMM-117-71-TM-D-700 connector is compatible with lead-free soldering processes. It meets the requirements of the RoHS directive and is suitable for use in lead-free assembly processes.
  • The recommended torque for the ZLTMM-117-71-TM-D-700 connector's screws is 0.5-1.5 N·m (4-12 in·lb). Over-torquing can damage the connector or the PCB.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZLTMM-117-71-TM-D-700 Overview

Use the download button to access the ZLTMM-117-71-TM-D-700 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZLTMM, or try a keyword search, such as Headers and Edge Type Connectors
