ZMOD4410AI2V - Renesas Electronics

Description: The ZMOD4410 gas sensor module is an easily integrated firmware configurable architecture enabling multiple sensing solutions with a common hardware platform. Simply download one of the firmware libraries that best supports your application from the Renesas website and integrate it with your host microcontroller. The JEDEC JESD47 qualified device supports 10+ years of life, supporting your indoor air quality (IAQ) application designed for detecting total volatile organic compounds (TVOCs), estimating CO2, a

Download ZMOD4410AI2V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

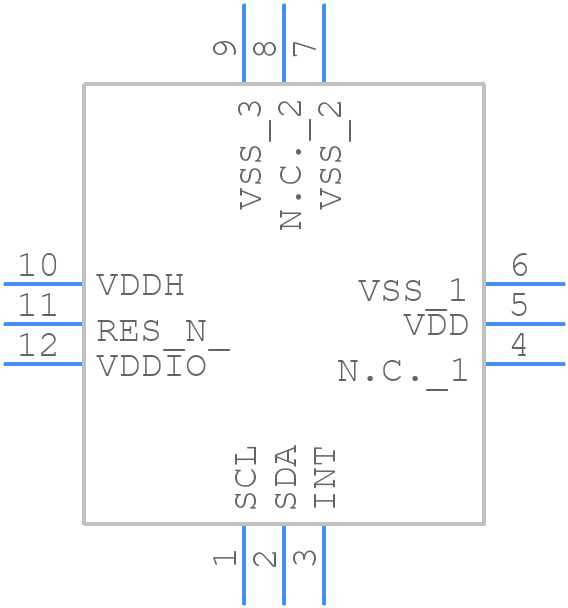

ZMOD4410AI2V - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZMOD4410AI2V - Renesas Electronics PCB footprint - Other - Other - ZMOD4410AI2V-2
click to zoom
3D Models
ZMOD4410AI2V - Renesas Electronics - 3D model - Other - ZMOD4410AI2V-2
click to zoom

ZMOD4410AI2V Details

  • Manufacturer Part Number:

    ZMOD4410AI2V

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LGA

  • Pin Count:

    12

  • Manufacturer Package Code:

    LGG12D1

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Body Breadth:

    3 mm

  • Body Height:

    0.7 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Type:

    DIGITAL OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ENVIRONMENT SENSORS

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD

ZMOD4410AI2V Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ZMOD4410AI2V is -20°C to 50°C. However, it can operate up to 65°C with reduced accuracy and lifespan.
  • The ZMOD4410AI2V requires individual calibration for each gas type and concentration range. Renesas provides a calibration protocol and software tools to help with this process. Additionally, the module can be calibrated using a reference gas or through a self-calibration process.
  • The response time of the ZMOD4410AI2V is typically around 10-30 seconds, depending on the gas type and concentration. This can vary depending on the specific application and environmental conditions.
  • Yes, the ZMOD4410AI2V is designed to operate in humid environments (up to 90% RH) and high temperatures (up to 65°C). However, the accuracy and lifespan of the module may be affected in extreme conditions. It's essential to follow the recommended operating conditions and take necessary precautions to ensure reliable operation.
  • The ZMOD4410AI2V communicates through an I2C interface, which is a standard serial communication protocol. You can use a microcontroller or system with an I2C interface to communicate with the module. Renesas provides example code and software libraries to help with integration.
