ZMOD4410AI3R - Renesas Electronics

Description: The ZMOD4410 gas sensor module is an easily integrated firmware configurable architecture enabling multiple sensing solutions with a common hardware platform. Simply download one of the firmware libraries that best supports your application from the Renesas website and integrate it with your host microcontroller. The JEDEC JESD47 qualified device supports 10+ years of life, supporting your indoor air quality (IAQ) application designed for detecting total volatile organic compounds (TVOCs), estimating CO2, a

Download ZMOD4410AI3R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

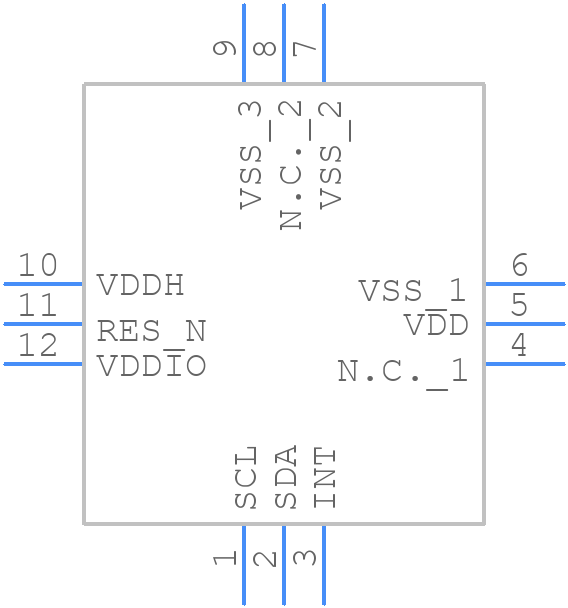

ZMOD4410AI3R - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZMOD4410AI3R - Renesas Electronics PCB footprint - Other - Other - LVG12
click to zoom
3D Models
ZMOD4410AI3R - Renesas Electronics - 3D model - Other - LVG12
click to zoom

ZMOD4410AI3R Details

  • Manufacturer Part Number:

    ZMOD4410AI3R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LGA

  • Pin Count:

    12

  • Manufacturer Package Code:

    LVG12D2

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    IP 67

  • Body Breadth:

    3 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Type:

    DIGITAL OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ENVIRONMENT SENSORS

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD

ZMOD4410AI3R Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ZMOD4410AI3R is -20°C to 50°C. However, it can operate up to 65°C with reduced accuracy and lifespan.
  • The ZMOD4410AI3R requires calibration during manufacturing, but it's recommended to recalibrate every 6-12 months in the field to maintain accuracy, depending on the application and environmental conditions.
  • The response time of the ZMOD4410AI3R is typically around 10-30 seconds, depending on the gas concentration and environmental conditions.
  • Yes, the ZMOD4410AI3R is designed to operate in humid environments (up to 90% RH) and high temperatures (up to 50°C). However, the sensor's accuracy and lifespan may be affected in extreme conditions.
  • The ZMOD4410AI3R outputs an analog signal that requires amplification and conditioning. It's recommended to use an external amplifier and ADC to process the signal and convert it to a digital format.
