ZMOD4510AI1R - Renesas Electronics

Description: Air Quality Sensors ZMOD4510AI1 GASSENSOR -40°C ~ 65°C 1.7V ~ 3.6V I2C Gas Sensor Module for Nitrogen Dioxide and Ozone

Download ZMOD4510AI1R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

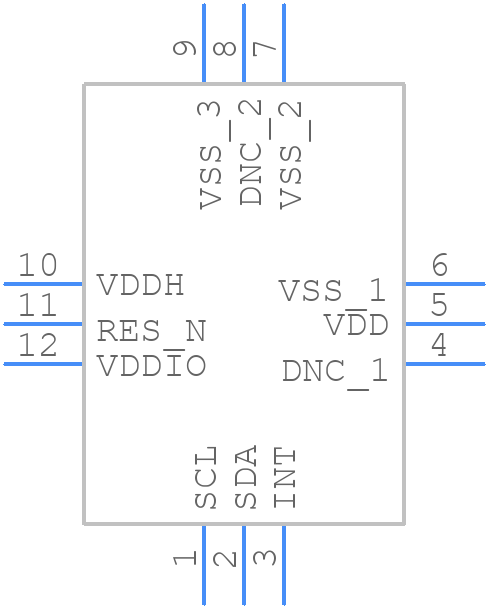

ZMOD4510AI1R - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZMOD4510AI1R - Renesas Electronics PCB footprint - Other - Other - 12-LGA_2025-2.2
click to zoom
3D Models
ZMOD4510AI1R - Renesas Electronics - 3D model - Other - 12-LGA_2025-2.2
click to zoom

ZMOD4510AI1R Details

  • Manufacturer Part Number:

    ZMOD4510AI1R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LGA

  • Pin Count:

    12

  • Manufacturer Package Code:

    LGG12D1

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Body Breadth:

    3 mm

  • Body Height:

    0.7 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Type:

    DIGITAL OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    MULTI GAS SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au)

ZMOD4510AI1R Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ZMOD4510AI1R is -20°C to 50°C.
  • The ZMOD4510AI1R has built-in temperature and humidity sensors, and it performs internal compensation to minimize the effects of temperature and humidity on gas sensing.
  • The response time of the ZMOD4510AI1R is typically around 10-30 seconds, depending on the gas concentration and environmental conditions.
  • Yes, the ZMOD4510AI1R is capable of detecting multiple gases simultaneously, including NOx, NO, NO2, and O3.
  • The ZMOD4510AI1R has built-in calibration and drift compensation mechanisms to ensure accurate gas sensing over time.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZMOD4510AI1R Overview

Use the download button to access the ZMOD4510AI1R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZMOD4, or try a keyword search, such as Other Sensors/Transducers
