ZMOD4510AI4V - Renesas Electronics

Description: The ZMOD4510 gas sensor platform detects air quality in a variety of indoor and outdoor applications. The module is a 12-pin LGA assembly (standard version 3.0mm x 3.0mm x 0.7mm) that consists of a gas sense element and a CMOS signal conditioning IC. The module’s sense element consists of a heater element on a silicon-based MEMS structure and a metal-oxide (MOx) chemiresistor. The signal conditioner controls the sensor temperature and measures the MOx resistance, which is a function of the gas concentration

Download ZMOD4510AI4V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

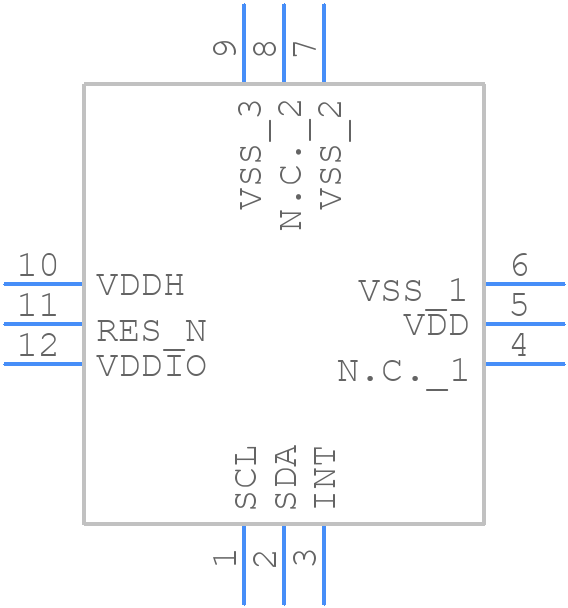

ZMOD4510AI4V - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZMOD4510AI4V - Renesas Electronics PCB footprint - Other - Other - LGA 3.00x3.00x0.90 mm 0.50mm Pitch_1
click to zoom
3D Models
ZMOD4510AI4V - Renesas Electronics - 3D model - Other - LGA 3.00x3.00x0.90 mm 0.50mm Pitch_1
click to zoom

ZMOD4510AI4V Details

  • Manufacturer Part Number:

    ZMOD4510AI4V

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LGA

  • Pin Count:

    12

  • Manufacturer Package Code:

    LVG12

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    IP67

  • Body Breadth:

    3 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Type:

    DIGITAL OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    MULTI GAS SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD

ZMOD4510AI4V Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ZMOD4510AI4V is -20°C to 50°C, with a tolerance of ±5°C for optimal performance.
  • The ZMOD4510AI4V has built-in temperature and humidity compensation, which is achieved through an internal temperature sensor and a proprietary algorithm that adjusts the gas sensor output accordingly.
  • The response time of the ZMOD4510AI4V to changes in gas concentrations is typically around 10-30 seconds, depending on the specific gas and concentration levels.
  • While the ZMOD4510AI4V can operate up to 50°C, it is not recommended for outdoor or high-temperature applications due to potential degradation of the sensor performance and accuracy. For such applications, consider using a more ruggedized gas sensor module.
  • The ZMOD4510AI4V has a built-in mechanism to compensate for gas sensor drift and aging, which involves periodic calibration and adjustment of the sensor output. This ensures that the sensor remains accurate and reliable over its operating lifetime.
