ZSPM4141AI1W12 - Renesas Electronics

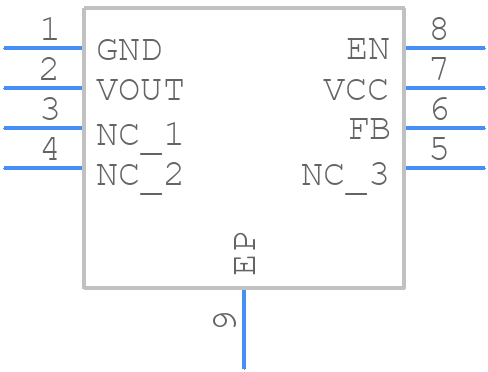

ZSPM4141AI1W12 Details

• Manufacturer Part Number:

  ZSPM4141AI1W12

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  DFN

• Package Description:

  DFN-8

• Pin Count:

  8

• Manufacturer Package Code:

  NTG8

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  3

• Adjustability:

  FIXED/ADJUSTABLE

• Input Voltage Absolute-Max:

  60 V

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e3

• Length:

  2 mm

• Line Regulation-Max:

  0.012%

• Line Regulation-Max (%/V):

  1

• Load Regulation-Max:

  0.024%

• Load Regulation-Max(%):

  2%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  85 °C

• Operating Temperature TJ-Min:

  -20 °C

• Operating Temperature-Max:

  55 °C

• Operating Temperature-Min:

  -20 °C

• Output Current1-Max:

  0.2 A

• Output Voltage1-Max:

  4.2 V

• Output Voltage1-Min:

  1.2 V

• Output Voltage1-Nom:

  1.2 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.08,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Terminal Finish:

  TIN

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  2 mm
