ZSS-105-06-S-D-1040-LL - SAMTEC

Description: SHROUDED .025" SQ POST HEADERS

Download ZSS-105-06-S-D-1040-LL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

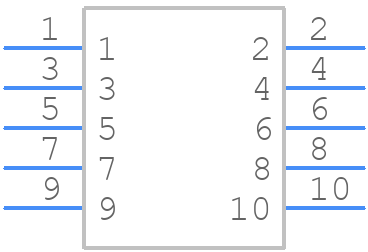

ZSS-105-06-S-D-1040-LL - SAMTEC - PCB symbol
click to zoom
PCB Footprints

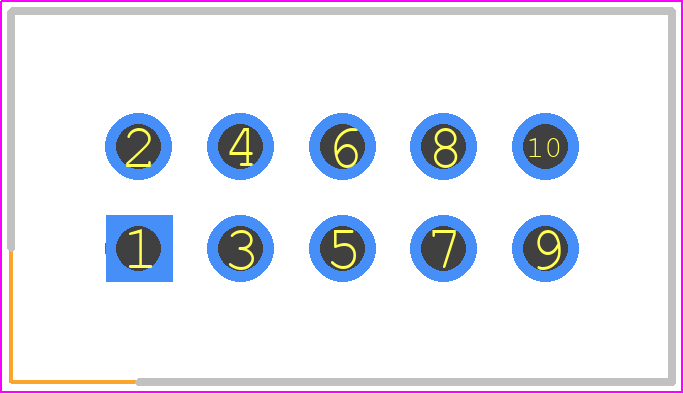

ZSS-105-06-S-D-1040-LL - SAMTEC PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - ZSS-105-06-S-D-1040-LL
click to zoom
3D Models
ZSS-105-06-S-D-1040-LL - SAMTEC - 3D model - Header, Shrouded - Straight PTH Box - ZSS-105-06-S-D-1040-LL
click to zoom

ZSS-105-06-S-D-1040-LL Details

  • Manufacturer Part Number:

    ZSS-105-06-S-D-1040-LL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

ZSS-105-06-S-D-1040-LL Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the ZSS-105-06-S-D-1040-LL connector is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.
  • Yes, the ZSS-105-06-S-D-1040-LL connector is designed to withstand high-vibration environments. Samtec's testing has shown that it can withstand vibrations up to 20 G's.
  • The operating temperature range for the ZSS-105-06-S-D-1040-LL connector is -55°C to +125°C, making it suitable for a wide range of industrial and commercial applications.
  • Yes, the ZSS-105-06-S-D-1040-LL connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The mating cycle life of the ZSS-105-06-S-D-1040-LL connector is 500 cycles minimum, making it suitable for applications where frequent mating and unmating are required.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSS-105-06-S-D-1040-LL Overview

Use the download button to access the ZSS-105-06-S-D-1040-LL schematic symbol, PCB footprint, and 3D model.
