ZSS-106-05-L-D-915-LL - SAMTEC

Description: Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tube

Download ZSS-106-05-L-D-915-LL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

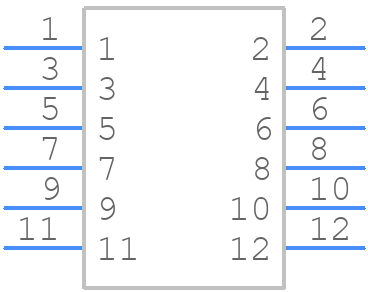

ZSS-106-05-L-D-915-LL - SAMTEC - PCB symbol
click to zoom
PCB Footprints

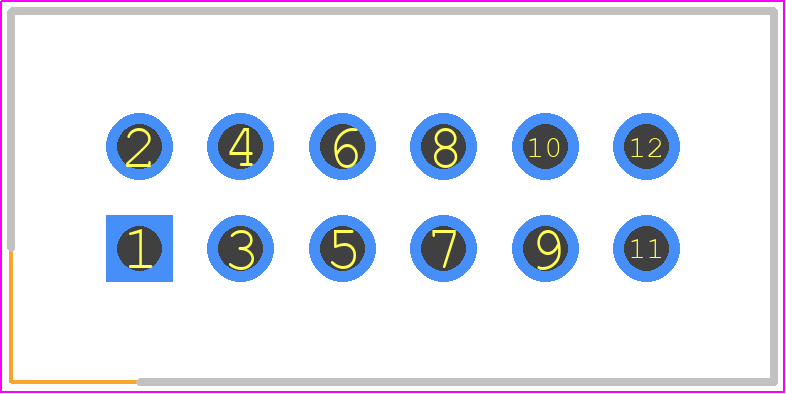

ZSS-106-05-L-D-915-LL - SAMTEC PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - ZSS-106-05-L-D-915-LL
click to zoom
3D Models
ZSS-106-05-L-D-915-LL - SAMTEC - 3D model - Header, Shrouded - Straight PTH Box - ZSS-106-05-L-D-915-LL
click to zoom

ZSS-106-05-L-D-915-LL Details

  • Manufacturer Part Number:

    ZSS-106-05-L-D-915-LL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

ZSS-106-05-L-D-915-LL Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the ZSS-106-05-L-D-915-LL is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the ZSS-106-05-L-D-915-LL is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The maximum operating temperature for the ZSS-106-05-L-D-915-LL is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • The ZSS-106-05-L-D-915-LL is designed for use with specific cable types. Before using it with a different cable type, ensure the cable meets the connector's mechanical and electrical requirements, and consult with Samtec Inc or a qualified engineer.
  • The typical lead time for the ZSS-106-05-L-D-915-LL may vary depending on the quantity, region, and availability. It's best to check with Samtec Inc or an authorized distributor for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSS-106-05-L-D-915-LL Overview

Use the download button to access the ZSS-106-05-L-D-915-LL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSS-1, or try a keyword search, such as Headers and Edge Type Connectors
