ZSS-111-05-F-D-900-LL footprint, schematic symbol and 3D model by SAMTEC

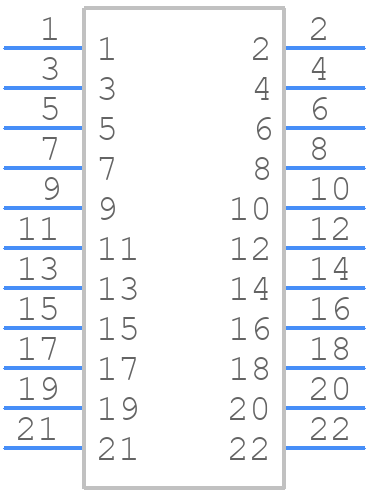

Symbol

click to zoom

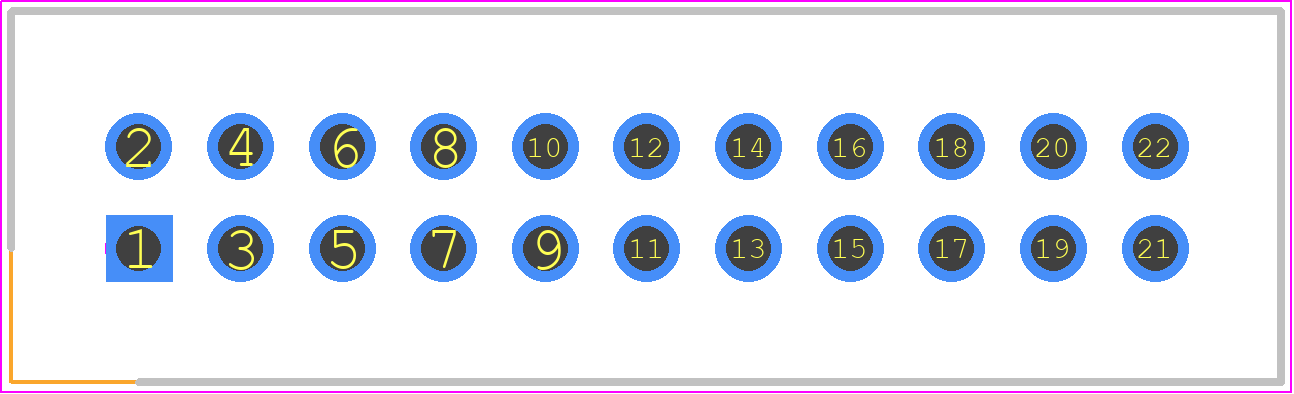

PCB Footprints

ZSS-111-05-F-D-900-LL - SAMTEC PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - ZSS-111-05-F-D-900-LL

click to zoom

3D Models

ZSS-111-05-F-D-900-LL - SAMTEC - 3D model - Header, Shrouded - Straight PTH Box - ZSS-111-05-F-D-900-LL

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ZSS-111-05-F-D-900-LL
Part Number ZSS-111-05-F-D-900-LL
Manufacturer SAMTEC
Pin Count 22
Part Category Connector
Package Category Header, Shrouded - Straight PTH Box
Footprint Name Header, Shrouded - Straight PTH Box - ZSS-111-05-F-D-900-LL
Released Date May 9, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ZSS-111-05-F-D-900-LL Details

Manufacturer Part Number:
ZSS-111-05-F-D-900-LL
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
France, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
8
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Rated Current (Signal):
3 A
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
22
UL Flammability Code:
94V-0

ZSS-111-05-F-D-900-LL Frequently Asked Questions (FAQs)

The recommended torque for the screws on the ZSS-111-05-F-D-900-LL connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the ZSS-111-05-F-D-900-LL connector is designed for high-speed signals and can support data rates up to 10 Gbps.
The operating temperature range for the ZSS-111-05-F-D-900-LL connector is -40°C to 125°C, according to Samtec's specifications.
Yes, the ZSS-111-05-F-D-900-LL connector is designed to meet the requirements of harsh environments, including high vibration, shock, and humidity, making it suitable for industrial, aerospace, and defense applications.
The mating cycle life of the ZSS-111-05-F-D-900-LL connector is 500 cycles minimum, according to Samtec's specifications.

Trust Checks

Community Provided

System Verified

Community Approved

ZSS-111-05-F-D-900-LL Overview

Use the download button to access the ZSS-111-05-F-D-900-LL schematic symbol, PCB footprint, and 3D model.
