ZSS-120-05-L-D-900 - SAMTEC

Description: Headers & Wire Housings .100" Shrouded Elevated Terminal Strip

Download ZSS-120-05-L-D-900 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ZSS-120-05-L-D-900 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

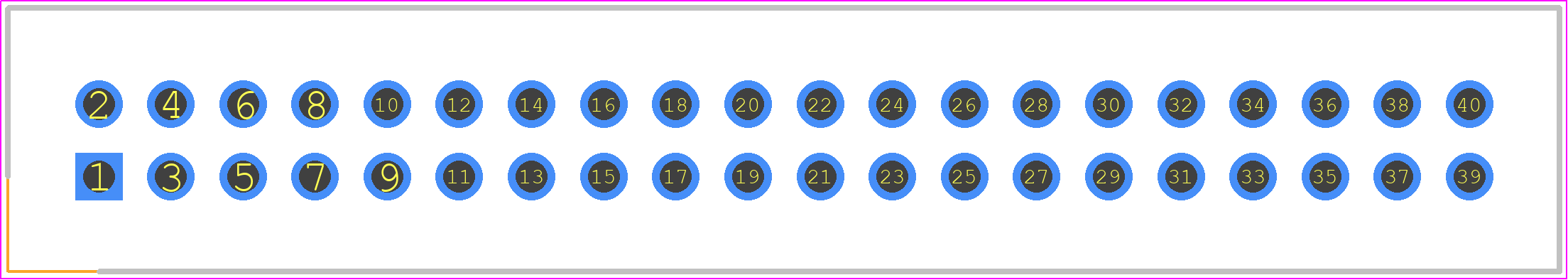

ZSS-120-05-L-D-900 - SAMTEC PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - ZSS-120-05-L-D-900
click to zoom
3D Models
ZSS-120-05-L-D-900 - SAMTEC - 3D model - Header, Shrouded - Straight PTH Box - ZSS-120-05-L-D-900
click to zoom

ZSS-120-05-L-D-900 Details

  • Manufacturer Part Number:

    ZSS-120-05-L-D-900

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

ZSS-120-05-L-D-900 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the ZSS-120-05-L-D-900 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the ZSS-120-05-L-D-900 connector is designed to withstand high-vibration environments. Samtec's testing has shown that it can withstand vibrations up to 20 G's (196 m/s²) in the Z-axis and 10 G's (98 m/s²) in the X- and Y-axes.
  • The ZSS-120-05-L-D-900 connector is rated for operating temperatures up to 125°C (257°F). However, it's recommended to derate the current carrying capacity of the connector by 1% for every 1°C (1.8°F) above 85°C (185°F) to ensure reliable operation.
  • The ZSS-120-05-L-D-900 connector is rated for a minimum of 500 mating cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the ZSS-120-05-L-D-900 connector is compatible with lead-free soldering processes. Samtec recommends following the IPC J-STD-020D standard for lead-free soldering.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSS-120-05-L-D-900 Overview

Use the download button to access the ZSS-120-05-L-D-900 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSS-1, or try a keyword search, such as Headers and Edge Type Connectors
