ZSSC3018BA3W - Renesas Electronics

Description: The ZSSC3018 is a sensor signal conditioner (SSC) integrated circuit for high-accuracy amplification and analog-to-digital conversion of differential or pseudo-differential input signals. Designed for high-resolution sensor module applications, the ZSSC3018 can perform offset, span, and 1st and 2nd order temperature compensation of the measured signal. Developed for correction of resistive bridge or absolute voltage sensors, it can also provide a corrected temperature output measured with an internal sensor

Download ZSSC3018BA3W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

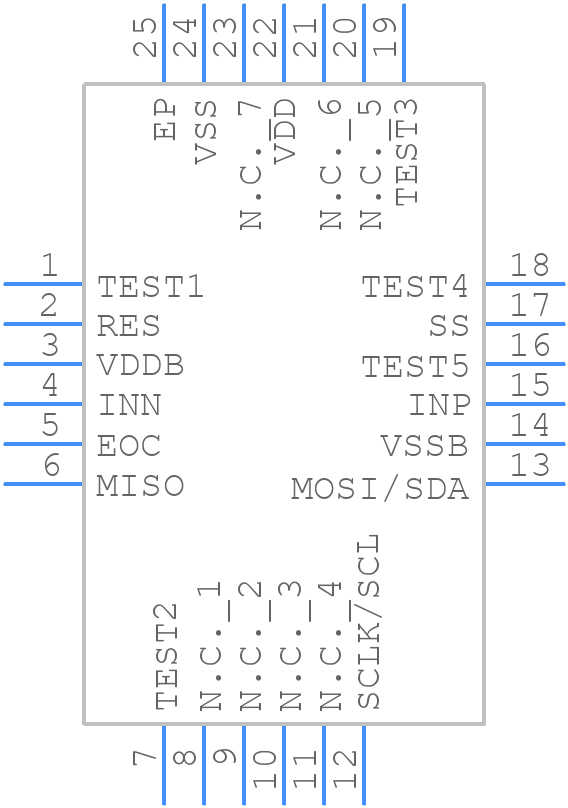

ZSSC3018BA3W - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSSC3018BA3W - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - qfn24
click to zoom
3D Models
ZSSC3018BA3W - Renesas Electronics - 3D model - Quad Flat No-Lead - qfn24
click to zoom

ZSSC3018BA3W Details

  • Manufacturer Part Number:

    ZSSC3018BA3W

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2020-09-08

  • Manufacturer:

    Renesas Electronics Corporation

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

ZSSC3018BA3W Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Calibration involves adjusting the internal offset and gain of the device. Use the CAL_IN pin to input a calibration voltage, and adjust the internal registers to achieve the desired accuracy.
  • The ZSSC3018BA3W can operate from -40°C to 125°C, but the accuracy and performance may degrade at extreme temperatures. Ensure proper thermal management and heat sinking for optimal performance.
  • Yes, the ZSSC3018BA3W can be used in a multi-channel configuration. Use separate channels for each sensor input, and ensure proper channel-to-channel isolation to prevent crosstalk and interference.
  • Use proper shielding, grounding, and filtering techniques to minimize EMI and RFI. Ensure that the PCB layout and component placement are designed to reduce electromagnetic radiation and susceptibility.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSSC3018BA3W Overview

Use the download button to access the ZSSC3018BA3W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSSC3, or try a keyword search, such as Other Signal Circuits
