ZSSC3154BE3R - Renesas Electronics

Description: The ZSSC3154 is an integrated circuit for highly accurate amplification and sensor-specific correction of a bridge sensor signal. Up to two temperature sensors can also be read in parallel. The circuitry provides different configurations of the analog outputs to show two measurement results simultaneously. This also allows generating a complementary bridge sensor signal, which is often required in safety-relevant applications. The ZSSC3154 can take readings from two external temperature sensors to compensat

Download ZSSC3154BE3R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

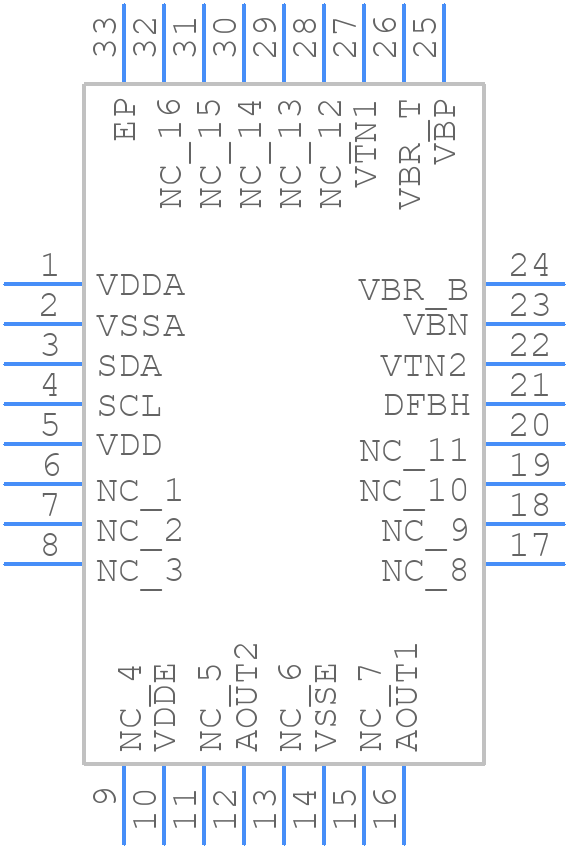

ZSSC3154BE3R - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ZSSC3154BE3R - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG32P4**+-+-
click to zoom
3D Models
ZSSC3154BE3R - Renesas Electronics - 3D model - Quad Flat No-Lead - NLG32P4**+-+-
click to zoom

ZSSC3154BE3R Details

  • Manufacturer Part Number:

    ZSSC3154BE3R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    NLG32S1

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Interface IC Type:

    AUTOMOTIVE SENSOR SIGNAL CONDITIONER

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Equivalence Code:

    LCC32,.2SQ(UNSPEC)

  • Package Shape:

    SQUARE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ZSSC3154BE3R Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AN1865) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and accuracy.
  • Renesas provides a calibration guide in their application note (AN1864) which includes step-by-step instructions for calibrating the device using the ZSSC3154BE3R Evaluation Kit and the accompanying software.
  • The ZSSC3154BE3R has an operating temperature range of -40°C to 125°C, but it's recommended to consult the datasheet for specific temperature-related specifications and limitations.
  • Yes, the ZSSC3154BE3R is designed to operate in high-vibration environments, but it's recommended to follow proper mounting and installation procedures to ensure reliable operation. Consult the datasheet and application notes for more information.
  • Renesas provides a troubleshooting guide in their application note (AN1866) which includes common issues, symptoms, and solutions to help engineers quickly identify and resolve problems with the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSSC3154BE3R Overview

Use the download button to access the ZSSC3154BE3R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSSC3, or try a keyword search, such as Other Signal Circuits
