Description:The ZSSC3240 is a sensor signal conditioning IC (SSC) for highly accurate amplification, digitization, and sensor-specific correction of resistive sensor signals. The ZSSC3240 is suitable for bridge and half-bridge sensors, as well as external voltage-source element and single-element sensors (e.g., Pt100 and external temperature sensor diodes) powered by an on-chip current source. Digital compensation of the sensor offset, sensitivity, temperature drift, and non-linearity is accomplished via a 26-bit mat
Renesas provides a recommended PCB layout guide in their application note AN19275, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and accuracy.
The ZSSC3240CI3R has an internal calibration mechanism, but it may require additional calibration for specific applications. Renesas provides a calibration guide in their application note AN19276, which includes steps for calibration and compensation for temperature, voltage, and other factors.
The ZSSC3240CI3R has an operating temperature range of -40°C to 125°C, but it can be extended to -40°C to 150°C with proper thermal management and derating. Consult the datasheet and application notes for more information on thermal management and derating.
The ZSSC3240CI3R has a digital interface that can be connected to a microcontroller or other digital systems using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) protocol. Renesas provides example code and interface guidelines in their application notes and software development kits.
The power consumption of the ZSSC3240CI3R depends on the operating mode and frequency. In low-power mode, the typical current consumption is around 10 μA. To minimize power consumption, use the low-power mode, reduce the sampling frequency, and optimize the system design to minimize power consumption in the entire system.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZSSC3240CI3R Overview

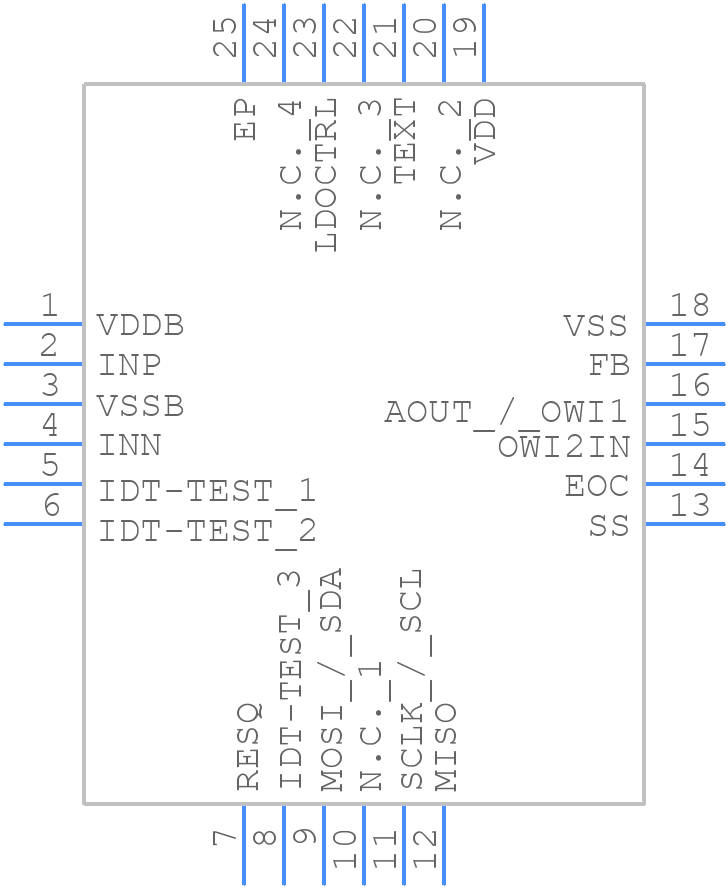

Use the download button to access the ZSSC3240CI3R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZSSC3,
or try a keyword search, such as Other Signal Circuits
