ZSSC4162DE4R - Renesas Electronics

Description: Automotive Sensor Signal Conditioner for a Single Resistive Bridge with SENT or I2C Output – Extended Temperature Measurements

Download ZSSC4162DE4R Model

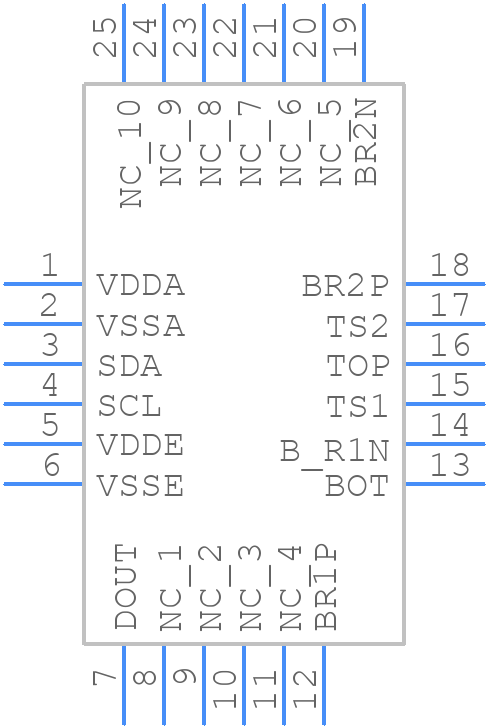

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ZSSC4162DE4R - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-VFQFPN 4.0 x 4.0 x 0.85 mm Body, 0.5mm Pitch-2025
click to zoom
3D Models
ZSSC4162DE4R - Renesas Electronics  - 3D model - Quad Flat No-Lead - 24-VFQFPN 4.0 x 4.0 x 0.85 mm Body, 0.5mm Pitch-2025
click to zoom

ZSSC4162DE4R Details

  • Manufacturer Part Number:

    ZSSC4162DE4R

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Analog IC - Other Type:

    ANALOG CIRCUIT

ZSSC4162DE4R Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note 'ZSSC4162DE4R PCB Layout Guidelines' (document number R01AN4393EU0100). It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency signals.
  • Calibration of the ZSSC4162DE4R involves a two-point calibration process. First, apply a known pressure (e.g., atmospheric pressure) and measure the output voltage. Then, apply a second known pressure (e.g., a calibrated pressure point) and measure the output voltage. Use these two points to calculate the sensitivity and offset values. Renesas provides a calibration guide in the application note 'ZSSC4162DE4R Calibration and Compensation' (document number R01AN4394EU0100).
  • The ZSSC4162DE4R has an operating temperature range of -40°C to 125°C. However, the device's accuracy and performance may degrade at extreme temperatures. It's essential to consider the temperature range of your specific application and ensure the device is operated within its recommended specifications.
  • To minimize EMI, use proper shielding, grounding, and layout techniques. Ensure that the device is placed in a shielded area, and use a ground plane to reduce noise. Additionally, use a low-pass filter or a ferrite bead to filter out high-frequency noise on the power supply lines. Renesas provides EMI mitigation guidelines in the application note 'ZSSC4162DE4R EMI Considerations' (document number R01AN4395EU0100).
  • Renesas recommends using a 10 μF ceramic capacitor and a 100 nF ceramic capacitor in parallel, placed as close as possible to the device's power supply pins. This decoupling scheme helps to reduce noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZSSC4162DE4R Overview

Use the download button to access the ZSSC4162DE4R schematic symbol, PCB footprint, and 3D model.
