ZST-110-01-L-D-540 footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

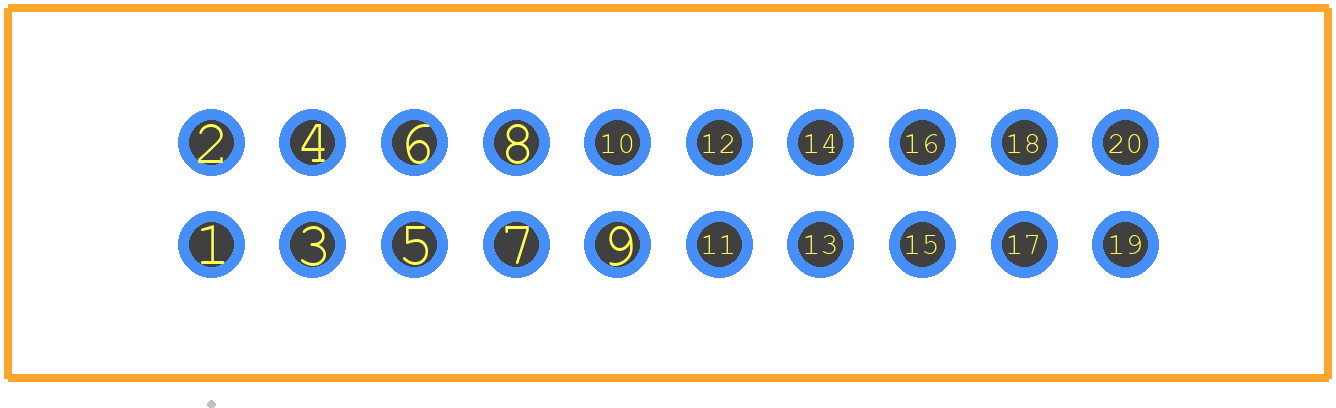

ZST-110-01-L-D-540 - SAMTEC PCB footprint - Other - Other - ZST-110-01-L-D-540

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ZST-110-01-L-D-540
Part Number ZST-110-01-L-D-540
Manufacturer SAMTEC
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - ZST-110-01-L-D-540
Released Date May 12, 2020
Last Modified Date Sep 9, 2025 9:48 AM UTC
Pinout / Pin List Click Here (Member Only)

ZST-110-01-L-D-540 Details

Manufacturer Part Number:
ZST-110-01-L-D-540
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
SHROUDED
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
20
UL Flammability Code:
94V-0

ZST-110-01-L-D-540 Frequently Asked Questions (FAQs)

The recommended torque for the screws on the ZST-110-01-L-D-540 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the ZST-110-01-L-D-540 connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
The maximum operating temperature for the ZST-110-01-L-D-540 connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's performance at higher temperatures to ensure reliable operation.
The ZST-110-01-L-D-540 connector is not designed for use in wet or humid environments. Samtec recommends using a connector with a higher IP rating or applying a conformal coating to protect the connector from moisture.
The recommended mating cycle for the ZST-110-01-L-D-540 connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and usage.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ZST-110-01-L-D-540 Overview

Use the download button to access the ZST-110-01-L-D-540 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ZST-1, or try a keyword search, such as Headers and Edge Type Connectors
