ZUS150512 - Cosel

Description: Cosel Isolated DC-DC Converter, Vin 4.5 → 9 V dc, Vout 12V dc, I/O isolation 500V ac

Download ZUS150512 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ZUS150512 - Cosel - PCB symbol
click to zoom
PCB Footprints

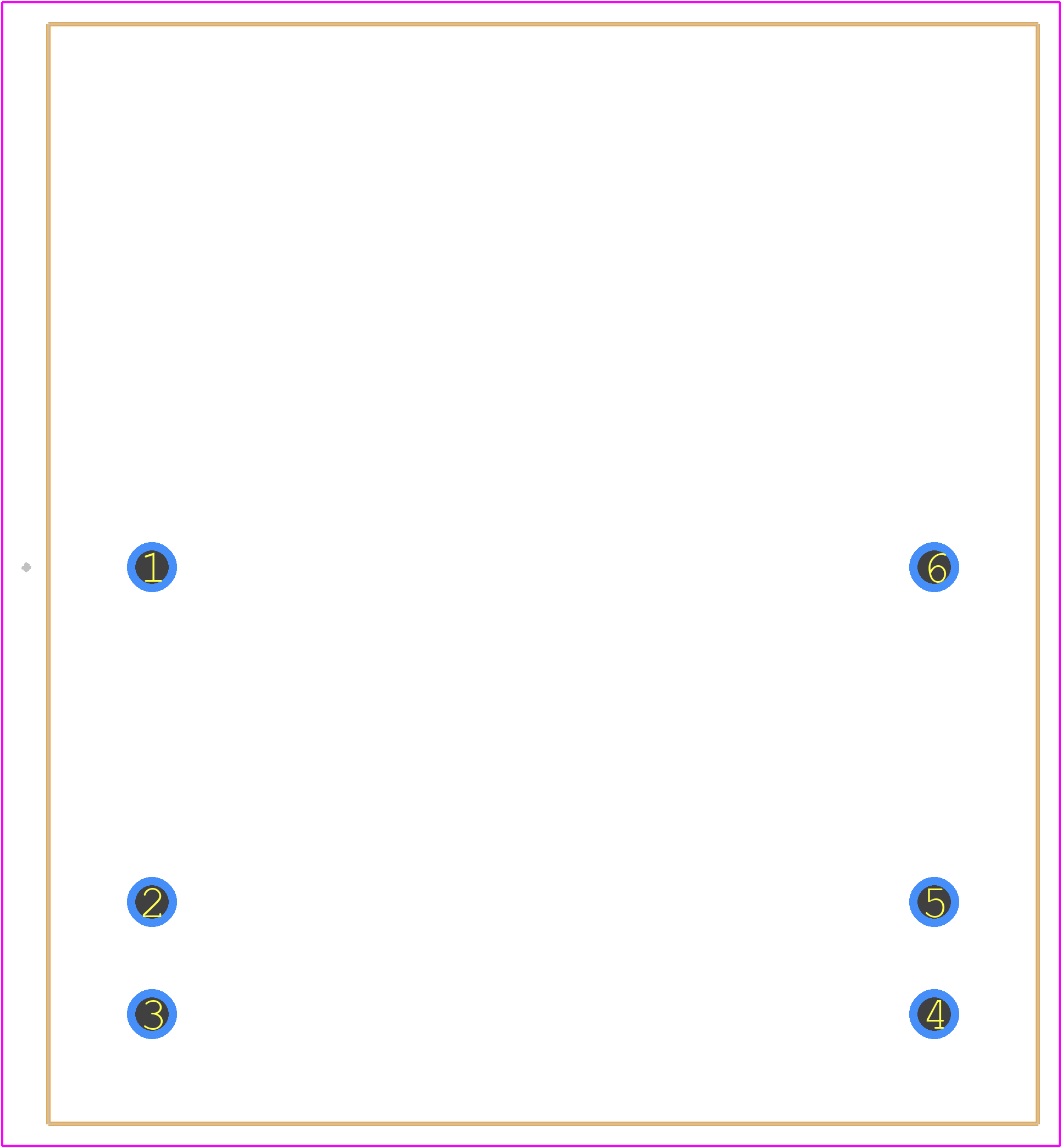

ZUS150512 - Cosel PCB footprint - Other - Other - ZUS15
click to zoom
3D Models
ZUS150512 - Cosel - 3D model - Other - ZUS15
click to zoom

ZUS150512 Details

  • Manufacturer Part Number:

    ZUS150512

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Package Description:

    ROHS COMPLIANT PACKAGE-6

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    9 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-P6

  • Length:

    50 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    55 °C

  • Output Voltage-Max:

    12.6 V

  • Output Voltage-Min:

    11.4 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    8.8 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    12 W

  • Trim/Adjustable Output:

    YES

  • Width:

    45 mm

ZUS150512 Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 100°C.
  • The ZUS150512 is designed to meet UL60950-1, EN60950-1, and IEC60950-1 safety standards. Ensure proper installation, wiring, and testing according to the datasheet and relevant safety standards to meet regulatory requirements.
  • The maximum allowable capacitance for the output filter capacitor is 220uF. Exceeding this value may affect the stability and performance of the DC-DC converter.
  • Yes, the ZUS150512 is designed to withstand vibrations up to 10G peak acceleration. However, it's recommended to follow proper mounting and screw torque procedures to ensure reliable operation.
  • Consult the datasheet and application notes for troubleshooting guidelines. Common issues can be resolved by checking input voltage, output voltage, and temperature monitoring, as well as ensuring proper thermal management and PCB layout.
