ZUS252412 footprint, schematic symbol and 3D model by Cosel

Symbol

click to zoom

PCB Footprints

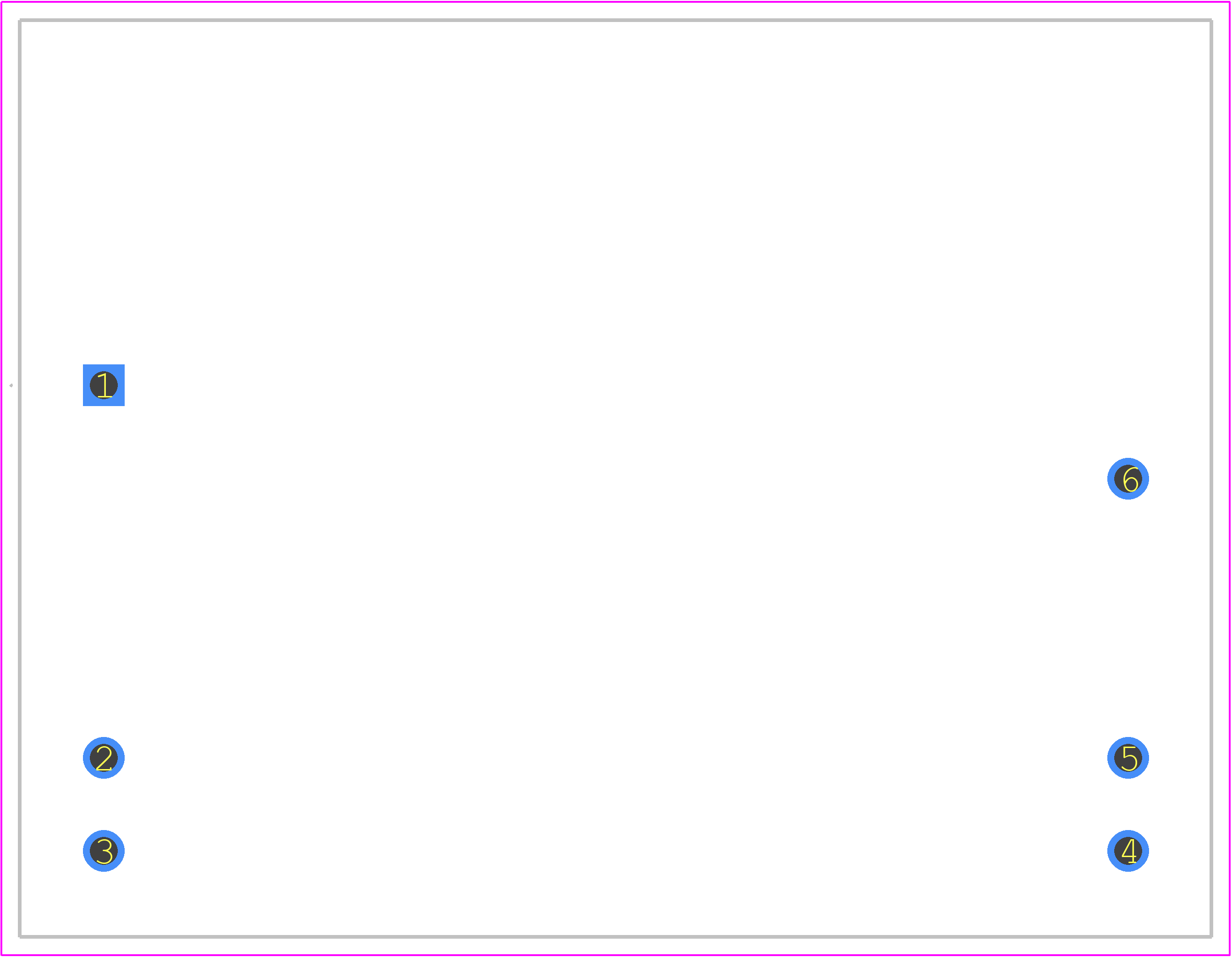

ZUS252412 - Cosel PCB footprint - Other - Other - ZUS252412-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ZUS252412
Part Number ZUS252412
Manufacturer Cosel
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - ZUS252412-4
Released Date Jun 5, 2026
Last Modified Date Jun 5, 2026 5:19 AM UTC
Pinout / Pin List Click Here (Member Only)

ZUS252412 Details

Manufacturer Part Number:
ZUS252412
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT, PACKAGE-6
ECCN Code:
EAR99
Manufacturer:
Cosel USA Inc
YTEOL:
0
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P6
Length:
65 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
55 °C
Output Voltage-Max:
12.6 V
Output Voltage-Min:
11.4 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
8.8 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
COMMERCIAL
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
25.2 W
Trim/Adjustable Output:
YES
Width:
50 mm

ZUS252412 Frequently Asked Questions (FAQs)

Cosel recommends a multi-layer PCB with a large ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Ensure good airflow around the converter and avoid blocking the airflow vents.
Follow the recommended PCB layout and ensure proper grounding. Use a metal enclosure and shielded cables to minimize EMI. Add EMI filters or common-mode chokes if necessary. Consult the Cosel application note for more information.
The maximum allowable capacitance is 220uF. Exceeding this value may cause instability or oscillation. Use low-ESR capacitors with a voltage rating of at least 1.5 times the output voltage.
Yes, but consult the Cosel application note for specific guidelines. Ensure proper synchronization and current sharing to prevent instability or damage.
Use a slow-blow fuse with a rating of 2-3 times the maximum input current. Consult the Cosel datasheet for specific recommendations.
