ZUS32405 - Cosel

Description: Cosel Through Hole 3W Isolated DC-DC Converter, I/O isolation 500V ac, Vout 5V dc

Download ZUS32405 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

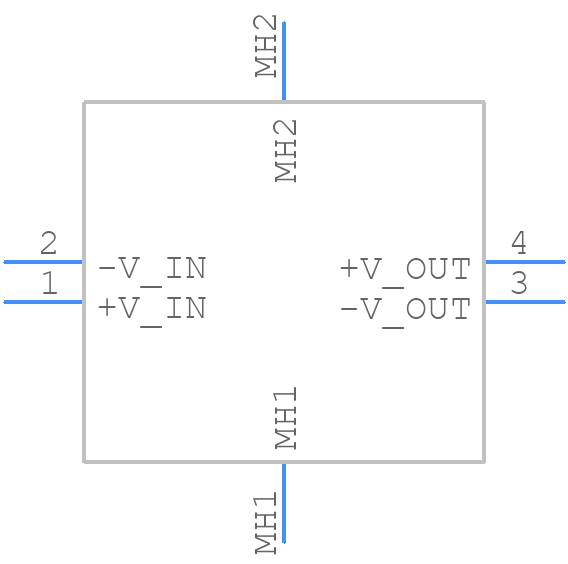

ZUS32405 - Cosel - PCB symbol
click to zoom
PCB Footprints

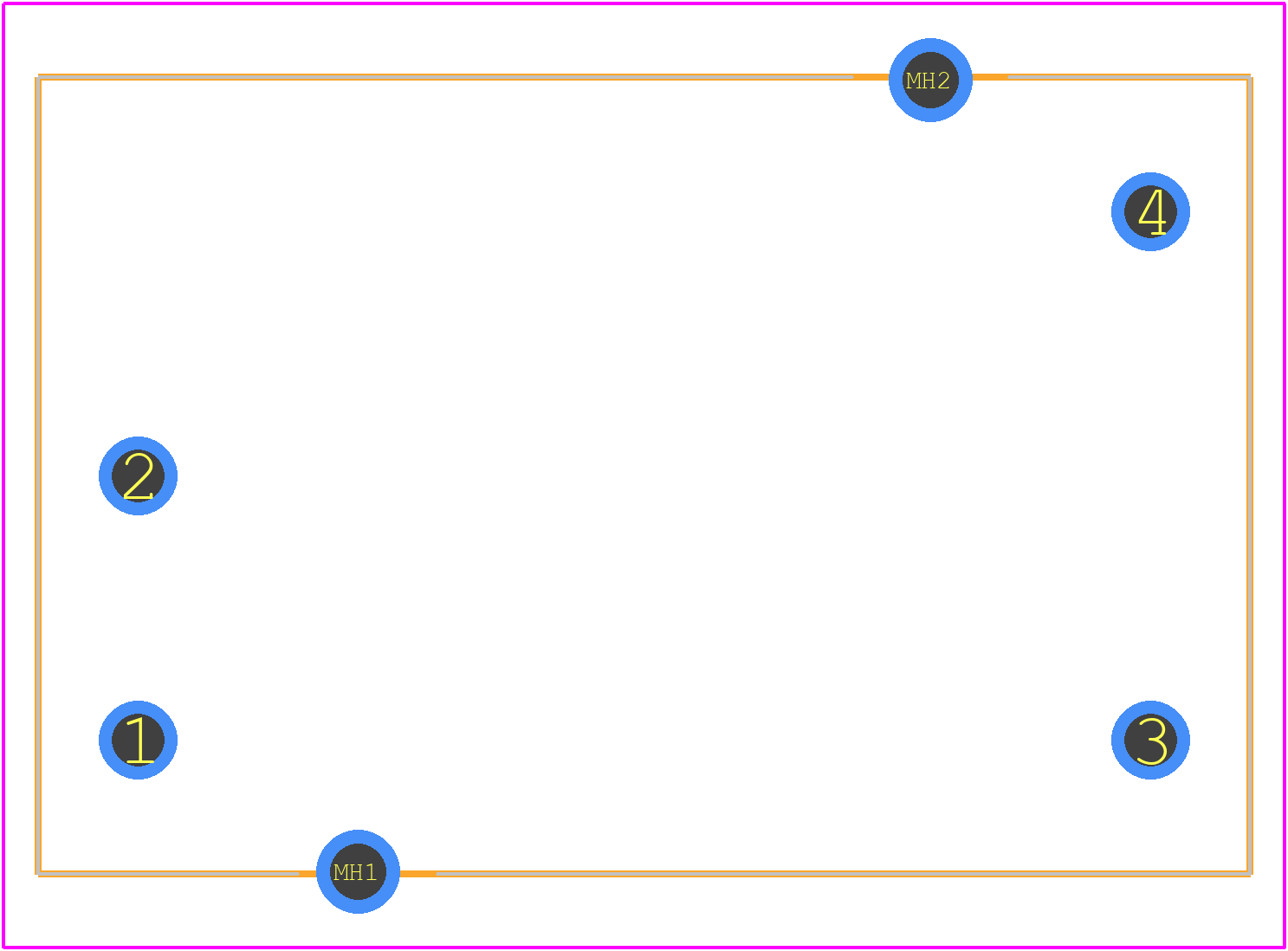

ZUS32405 - Cosel PCB footprint - Other - Other - ZUS32405-3
click to zoom
3D Models
ZUS32405 - Cosel - 3D model - Other - ZUS32405-3
click to zoom

ZUS32405 Details

  • Manufacturer Part Number:

    ZUS32405

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Package Description:

    Module-4

  • Pin Count:

    4

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P4

  • Length:

    35 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.85 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    7.3 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Width:

    23 mm

ZUS32405 Frequently Asked Questions (FAQs)

  • Cosel recommends a 4-layer PCB with a solid ground plane and a thermal relief pattern under the module. Ensure good airflow and consider adding a heat sink or thermal interface material to maintain a junction temperature below 100°C.
  • Follow the recommended PCB layout and ensure proper grounding. Use a shielded enclosure and consider adding EMI filters or common-mode chokes to minimize radiated emissions. Consult the relevant EMC standards (e.g., EN 55022, CISPR 22) for specific requirements.
  • The maximum allowable capacitance for the output filter is 10uF. Exceeding this value may cause instability or oscillation. Consult the datasheet for recommended output filter configurations.
  • Yes, the ZUS32405 can be used in redundant or N+1 configurations. However, ensure proper synchronization and control of the modules to prevent unwanted interactions. Consult Cosel's application notes for guidance on redundant power supply designs.
  • Cosel recommends a 5A to 10A slow-blow fuse (e.g., Littlefuse 5A or 10A) to protect the module from input overcurrent conditions. Consult the datasheet for specific fuse selection guidelines.
