ZUS62412 - Cosel

Description: Cosel Isolated DC-DC Converter, Vin 18 → 36 V dc, Vout 12V dc, I/O isolation 500V ac

Download ZUS62412 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ZUS62412 - Cosel - PCB symbol
click to zoom

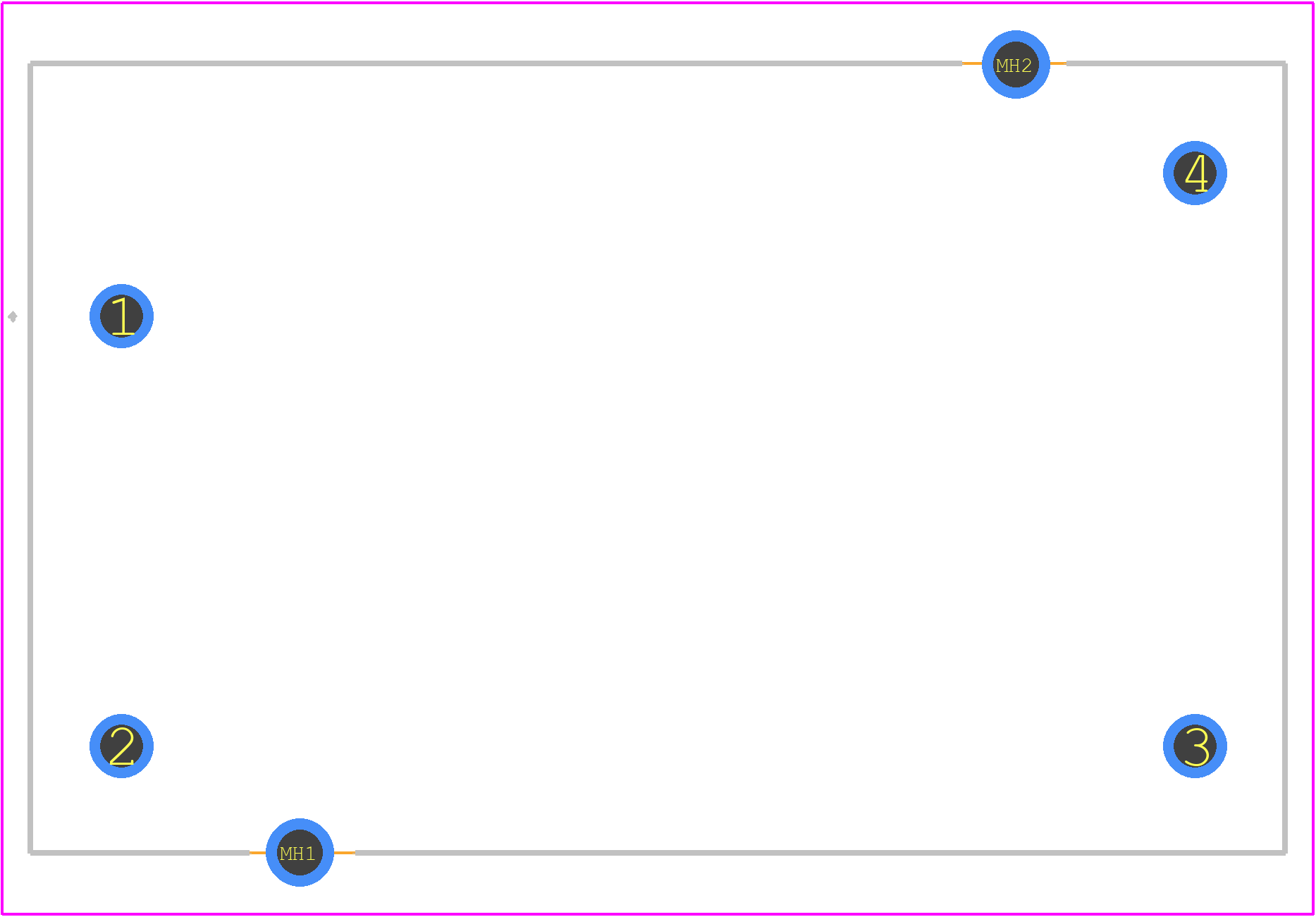

PCB Footprints
ZUS62412 - Cosel PCB footprint - Other - Other - ZUS62412-3
click to zoom
3D Models
ZUS62412 - Cosel - 3D model - Other - ZUS62412-3
click to zoom

ZUS62412 Details

  • Manufacturer Part Number:

    ZUS62412

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Package Description:

    ROHS COMPLIANT, PACKAGE-4

  • Pin Count:

    4

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P4

  • Length:

    44.5 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    12.6 V

  • Output Voltage-Min:

    11.4 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    7.3 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    NO

  • Width:

    28 mm

ZUS62412 Frequently Asked Questions (FAQs)

  • Cosel recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure efficient heat dissipation.
  • To ensure reliable start-up and shutdown, Cosel recommends a soft-start circuit and a voltage supervisor to monitor the output voltage and prevent damage during power-up and power-down sequences.
  • The ZUS62412 can drive a maximum capacitive load of 10,000 μF, but it's recommended to derate the output capacitance to 4,700 μF for optimal performance and reliability.
  • Yes, the ZUS62412 can be used in a redundant configuration to achieve high reliability and fault tolerance. Cosel recommends using a diode ORing circuit to connect the outputs of multiple ZUS62412 units.
  • Cosel recommends using a fuse with a rating of 5A to 10A, depending on the input voltage and current requirements, to protect the device from overcurrent conditions.
