ZUW152415 footprint, schematic symbol and 3D model by Cosel

Symbol

click to zoom

PCB Footprints

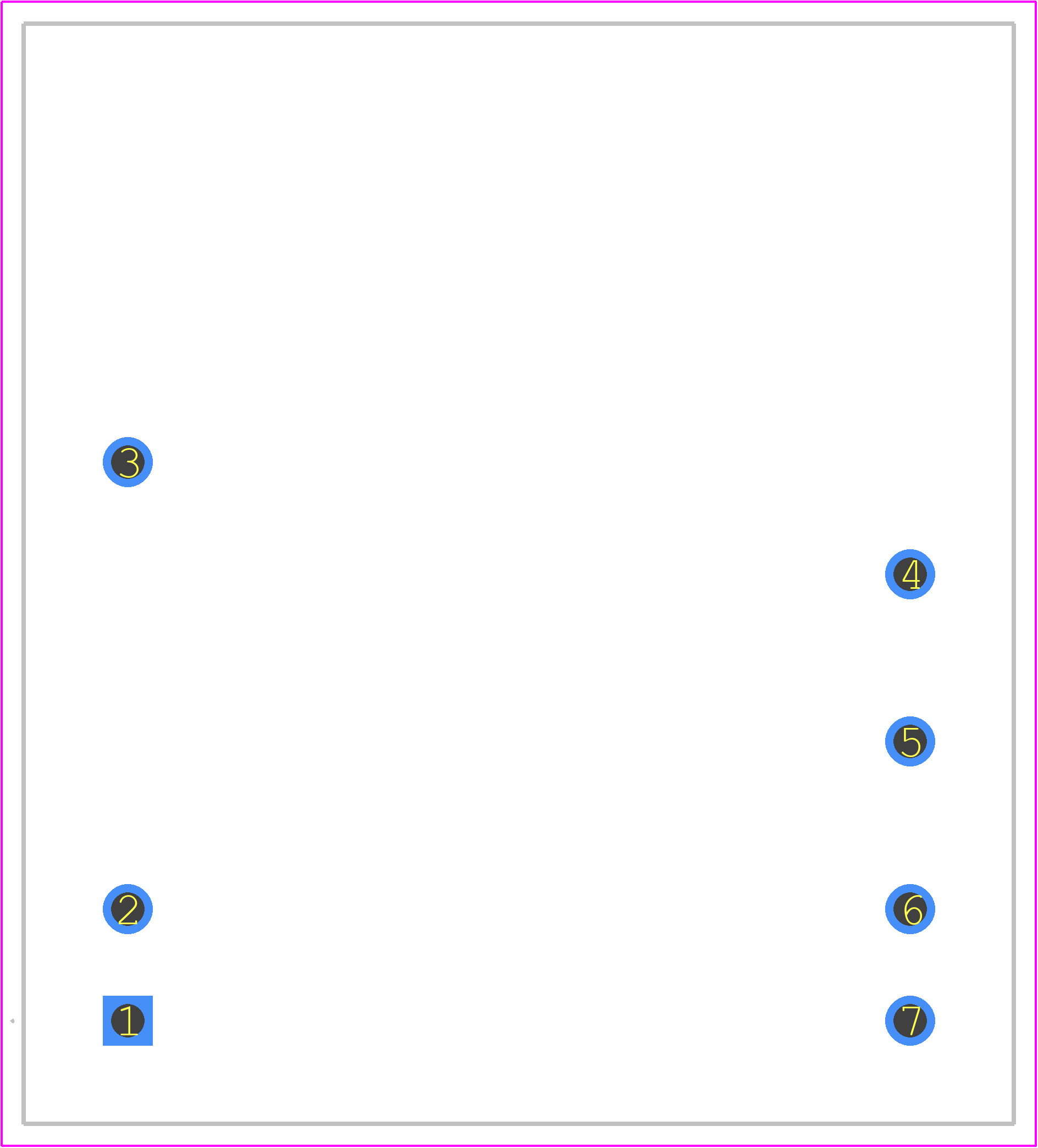

ZUW152415 - Cosel PCB footprint - Other - Other - ZUW152415-1

click to zoom

3D Models

ZUW152415 - Cosel - 3D model - Other - ZUW152415-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ZUW152415
Part Number ZUW152415
Manufacturer Cosel
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - ZUW152415-1
Released Date Sep 18, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ZUW152415 Details

Manufacturer Part Number:
ZUW152415
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
Module-7
ECCN Code:
EAR99
Manufacturer:
Cosel USA Inc
YTEOL:
0
Additional Feature:
NEGATIVE OUTPUT VOLTAGE IS -15 V, OUTPUT PINS CAN BE CONNECTED IN SERIES TO MAKE A 30V OUTPUT
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P7
Length:
50 mm
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
7
Operating Temperature-Max:
55 °C
Output Voltage-Max:
15.75 V
Output Voltage-Min:
14.25 V
Output Voltage-Nom:
15 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Equivalence Code:
MODULE,7LEAD,1.4
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Qualification Status:
Not Qualified
Seated Height-Max:
8.8 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
COMMERCIAL
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
15 W
Trim/Adjustable Output:
YES
Width:
45 mm

ZUW152415 Frequently Asked Questions (FAQs)

Cosel recommends a multi-layer PCB with a large ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Ensure good airflow around the converter and avoid blocking the airflow with nearby components.
Follow the recommended PCB layout and ensure proper grounding. Use a metal enclosure and consider adding EMI filters or shielding to minimize radiation. Ensure cables are properly routed and terminated to minimize emissions.
The maximum allowable capacitance for the output filter is 220uF. Exceeding this value may cause instability or oscillation. Ensure the output capacitor is rated for the maximum output voltage and current.
Yes, the ZUW152415 can be used in a redundant or parallel configuration. However, ensure proper synchronization and current sharing mechanisms are implemented to prevent uneven current distribution and potential damage.
Cosel recommends a fuse rating of 5A to 10A, depending on the input voltage and current. A slow-blow fuse (e.g., Littlefuse 5A or equivalent) is recommended to handle inrush currents.

Trust Checks

Community Provided

System Verified

Community Approved

ZUW152415 Overview

Use the download button to access the ZUW152415 schematic symbol, PCB footprint, and 3D model.
