ZVP2120G - Diodes Incorporated

ZVP2120G Details

• Manufacturer Part Number:

  ZVP2120G

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

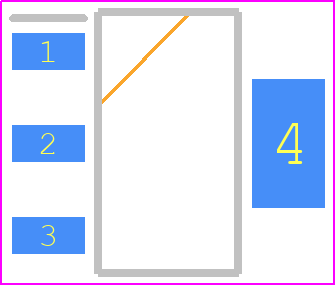

• Part Package Code:

  SOT-223

• Package Description:

  SOT-223, 4 PIN

• Pin Count:

  4

• ECCN Code:

  EAR99

• Manufacturer:

  Diodes Incorporated

• YTEOL:

  5.95

• Case Connection:

  DRAIN

• Configuration:

  SINGLE

• DS Breakdown Voltage-Min:

  200 V

• Drain Current-Max (ID):

  0.3 A

• Drain-source On Resistance-Max:

  25 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• JESD-30 Code:

  R-PDSO-G4

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  4

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  P-CHANNEL

• Power Dissipation-Max (Abs):

  2 W

• Pulsed Drain Current-Max (IDM):

  1.2 A

• Qualification Status:

  Not Qualified

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
