ZX60-B-5S(31) - Hirose

Description: USB - micro B USB 2.0 Plug Connector 5 Position Surface Mount, Right Angle; Through Hole

Download ZX60-B-5S(31) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ZX60-B-5S(31) - Hirose - PCB symbol
click to zoom
PCB Footprints

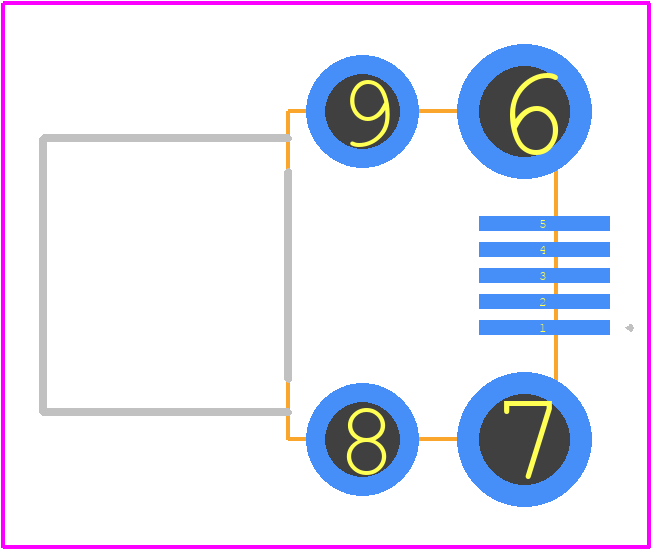

ZX60-B-5S(31) - Hirose PCB footprint - Other - Other - ZX60-B-5S(31)-4
click to zoom
3D Models
ZX60-B-5S(31) - Hirose - 3D model - Other - ZX60-B-5S(31)-4
click to zoom

ZX60-B-5S(31) Details

  • Manufacturer Part Number:

    ZX60-B-5S(31)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    YES

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STAINLESS STEEL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    5

ZX60-B-5S(31) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m (5 to 15 lbf·in) for the M2 screws.
  • Yes, the ZX60-B-5S(31) connector is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow the manufacturer's guidelines for mounting and screw torque.
  • The ZX60-B-5S(31) connector is rated for operating temperatures up to 125°C (257°F), but it's recommended to derate the current and voltage ratings at higher temperatures.
  • The ZX60-B-5S(31) connector has a IP67 rating, which means it's protected against dust and temporary immersion in water, but it's not recommended for continuous exposure to water or harsh chemicals.
  • The recommended cable size is AWG 20 to AWG 24, and the recommended cable type is a shielded or unshielded twisted pair or multi-conductor cable.
