ZX80-B-5SA(30) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

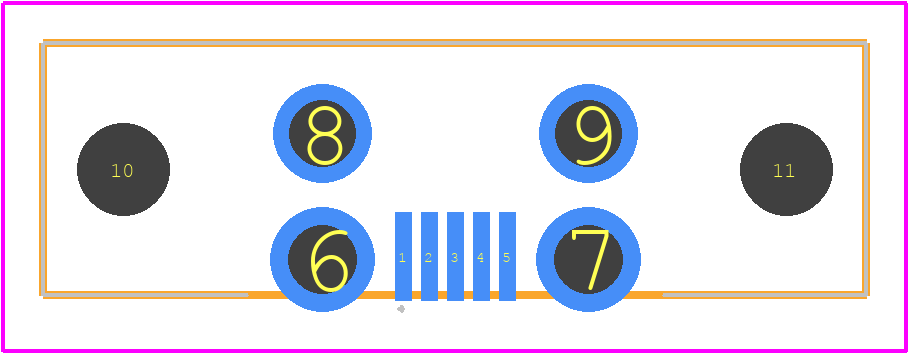

PCB Footprints

ZX80-B-5SA(30) - Hirose PCB footprint - Other - Other - ZX80-B-5SA(30)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ZX80-B-5SA(30)
Part Number ZX80-B-5SA(30)
Manufacturer Hirose
Pin Count 9
Part Category Connector
Package Category Other
Footprint Name Other - ZX80-B-5SA(30)
Released Date Feb 13, 2018
Last Modified Date Apr 10, 2026 3:49 AM UTC
Pinout / Pin List Click Here (Member Only)

ZX80-B-5SA(30) Details

Manufacturer Part Number:
ZX80-B-5SA(30)
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
7
Connector Type:
USB CONNECTOR
Contact Finish Termination:
Gold (Au)
Contact Gender:
FEMALE
Contact Style:
MICRO USB2.0 B
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER/POLYAMIDE
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Finish:
TIN
Shell Material:
STAINLESS STEEL
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
5
UL Flammability Code:
94V-0

ZX80-B-5SA(30) Frequently Asked Questions (FAQs)

The recommended mating cycle for the ZX80-B-5SA(30) connector is 500 cycles.
Yes, the ZX80-B-5SA(30) connector is designed to withstand high-vibration environments and is suitable for applications that require resistance to vibration and shock.
The operating temperature range for the ZX80-B-5SA(30) connector is -40°C to 105°C.
Yes, the ZX80-B-5SA(30) connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
The typical contact resistance of the ZX80-B-5SA(30) connector is 10 milliohms or less.

Trust Checks

Expert Contribution

System Verified

Community Approved

ZX80-B-5SA(30) Overview

Use the download button to access the ZX80-B-5SA(30) schematic symbol and PCB footprint.
