A good PCB layout for the ZXGD3006E6TA should include a solid ground plane, wide power traces, and a thermal relief pattern under the device. This helps to reduce thermal resistance and ensures efficient heat dissipation.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and consider derating the device's power handling capabilities according to the ambient temperature.
The ZXGD3006E6TA has built-in ESD protection, but it's still crucial to follow standard ESD handling precautions, such as using an anti-static wrist strap, anti-static bags, and a grounded work surface, to prevent damage during handling and assembly.
While the ZXGD3006E6TA is primarily designed for low-frequency applications, it can be used in high-frequency switching applications with proper design considerations, such as minimizing parasitic inductance and ensuring adequate decoupling.
For reliable soldering and rework, follow the recommended soldering temperature profile, use a solder with a melting point below 260°C, and avoid exposing the device to excessive thermal stress or moisture.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXGD3006E6TA Overview

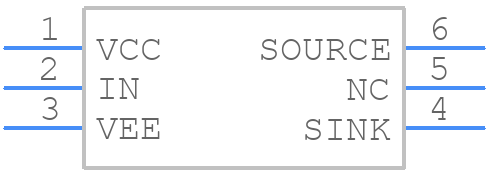

Use the download button to access the ZXGD3006E6TA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXGD3,
or try a keyword search, such as MOSFET Drivers
