A good PCB layout for the ZXGD3009DYTA should include a solid ground plane, wide copper traces for power and ground, and a thermal relief pattern under the device. A minimum of 2oz copper thickness is recommended. Refer to the Diodes Incorporated application note AN-114 for more details.
To ensure proper biasing, follow the recommended voltage and current ratings in the datasheet. Use a voltage regulator or a voltage divider network to set the bias voltage. Ensure the bias current is within the recommended range (typically 1-10mA) and that the bias voltage is stable and noise-free.
The ZXGD3009DYTA has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded. Avoid touching the device pins or exposed internal components.
The ZXGD3009DYTA is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and thermal interface materials are used to maintain a safe junction temperature.
The ZXGD3009DYTA is manufactured by Diodes Incorporated, which adheres to strict quality and reliability standards, including ISO 9001, IATF 16949, and AEC-Q100. The device is also qualified to automotive and industrial standards, ensuring high reliability and performance in demanding applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXGD3009DYTA Overview

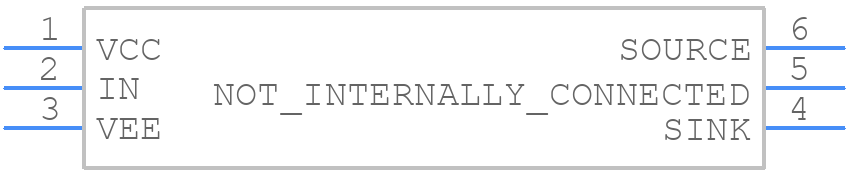

Use the download button to access the ZXGD3009DYTA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXGD3,
or try a keyword search, such as MOSFET Drivers
