A good PCB layout for the ZXGD3101N8TC involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 10uF capacitor between the VIN and GND pins to filter out noise.
To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) value. A 10uF ceramic capacitor with an ESR of less than 100mΩ is recommended. Additionally, the output voltage can be further stabilized by adding a 1uF ceramic capacitor in parallel with the output capacitor.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device.
While the ZXGD3101N8TC is rated for operation up to 125°C, it's essential to consider the derating of the device's performance at high temperatures. The device's power dissipation and output current capability will decrease as the temperature increases. Ensure that the device is properly heatsinked and the thermal design is adequate for the specific application.
When troubleshooting issues with the ZXGD3101N8TC, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, such as excessive temperature or burning smells. Use an oscilloscope to inspect the input and output waveforms for any anomalies. If the issue persists, consult the datasheet and application notes or contact Diodes Incorporated's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXGD3101N8TC Overview

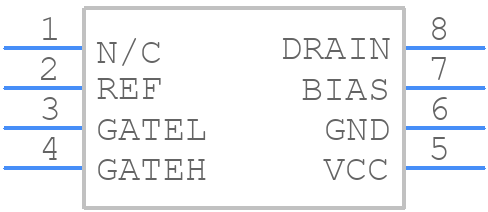

Use the download button to access the ZXGD3101N8TC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXGD3,
or try a keyword search, such as Switching Regulator or Controllers
