A good PCB layout for the ZXGD3103N8TC should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces near the device to minimize thermal resistance.
To ensure proper biasing, follow the recommended operating conditions in the datasheet. Typically, this involves setting the input voltage (VIN) between 2.5V and 5.5V, and the output voltage (VOUT) between 0.8V and 3.3V. Also, ensure the input capacitor (CIN) is properly sized to filter out noise and ripple.
When selecting COUT, consider the output voltage ripple, output current, and stability requirements. A general rule of thumb is to choose a capacitor with a capacitance value between 10uF and 22uF, and a voltage rating at least 1.5 times the output voltage. Additionally, ensure the capacitor's ESR (Equivalent Series Resistance) is low enough to maintain stability.
To troubleshoot issues, start by verifying the PCB layout and component selection meet the recommended guidelines. Check for proper input and output capacitor selection, and ensure the device is properly biased. Use an oscilloscope to monitor the input and output waveforms, and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Operating the ZXGD3103N8TC outside the recommended operating conditions can lead to reduced performance, instability, or even device damage. Ensure the input voltage, output voltage, and operating temperature are within the specified ranges to maintain optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXGD3103N8TC Overview

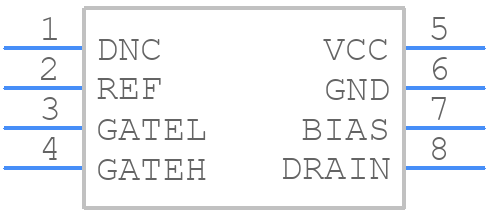

Use the download button to access the ZXGD3103N8TC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXGD3,
or try a keyword search, such as MOSFET Drivers
