A good PCB layout for the ZXGD3108N8TC should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces near the device to minimize thermal resistance.
To ensure proper biasing, follow the recommended voltage and current ratings in the datasheet. Use a stable voltage source, and consider adding decoupling capacitors to minimize noise and ripple. Ensure the input voltage is within the recommended range (1.8V to 5.5V) and the output current does not exceed 1A.
The ZXGD3108N8TC has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent damage. For latch-up prevention, ensure the device is powered up and down slowly, and avoid voltage spikes or transients on the input pins.
The ZXGD3108N8TC is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and thermal design to prevent overheating.
Store the ZXGD3108N8TC in a dry, cool place, away from direct sunlight and moisture. Handle the device by the body, avoiding touching the pins or electrical connections. Use anti-static wrist straps or mats when handling the device to prevent ESD damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXGD3108N8TC Overview

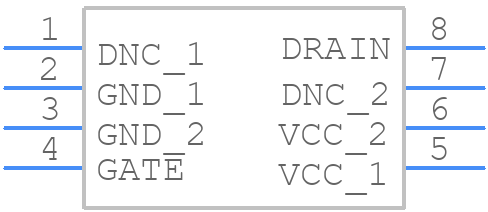

Use the download button to access the ZXGD3108N8TC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXGD3,
or try a keyword search, such as MOSFET Drivers
