ZXGD3111N7TC - Diodes Incorporated

Description: Gate Drivers 200V Active OR'ing FET 50mW 48V

Download ZXGD3111N7TC Model

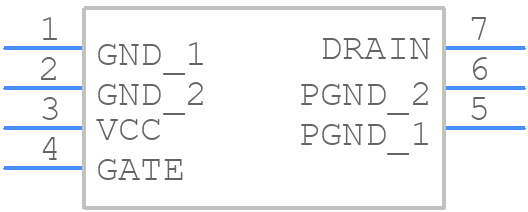

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ZXGD3111N7TC - Diodes Incorporated PCB footprint - Other - Other - SO-7_2023
click to zoom
3D Models
ZXGD3111N7TC - Diodes Incorporated  - 3D model - Other - SO-7_2023
click to zoom

ZXGD3111N7TC Details

  • Manufacturer Part Number:

    ZXGD3111N7TC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-7

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • High Side Driver:

    YES

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G7

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -50 °C

  • Output Peak Current Limit-Nom:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Equivalence Code:

    SOP7/8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.4 µs

  • Turn-on Time:

    0.4 µs

  • Width:

    3.9 mm

ZXGD3111N7TC Frequently Asked Questions (FAQs)

  • A good PCB layout for the ZXGD3111N7TC involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 10uF ceramic capacitor between the VIN and GND pins to filter out noise.
  • To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value. A 10uF to 22uF ceramic capacitor is recommended. Additionally, the output voltage can be stabilized by adding a 1uF to 10uF capacitor between the FB and GND pins.
  • The ZXGD3111N7TC can handle a maximum input voltage of 18V. However, it's recommended to operate the device within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
  • The output voltage of the ZXGD3111N7TC can be calculated using the following formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected between the FB and GND pins. The output voltage can be adjusted by changing the ratio of R1 and R2.
  • The ZXGD3111N7TC has a thermal derating of 6.4mW/°C above 25°C. This means that the device's power dissipation should be reduced by 6.4mW for every degree Celsius above 25°C to ensure reliable operation.
