A good PCB layout for the ZXLD1366EN8TC should include a solid ground plane, wide power traces, and a thermal relief pattern around the device. This helps to reduce thermal resistance and ensures efficient heat dissipation.
To ensure proper biasing, connect the EN pin to a voltage source (e.g., VCC) through a 10kΩ resistor. This enables the device and allows it to regulate the output voltage. Additionally, ensure the input voltage (VIN) is within the recommended range (2.5V to 5.5V).
The ZXLD1366EN8TC is capable of delivering up to 1.5A of output current. However, it's essential to consider the device's thermal limitations and ensure proper heat sinking to prevent overheating.
The ZXLD1366EN8TC is rated for operation up to 125°C. However, it's crucial to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and thermal design to prevent overheating.
To troubleshoot issues, start by verifying the input voltage, output voltage, and enable pin connections. Check for proper PCB layout, thermal design, and component selection. If issues persist, consult the datasheet and application notes or contact Diodes Incorporated's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXLD1366EN8TC Overview

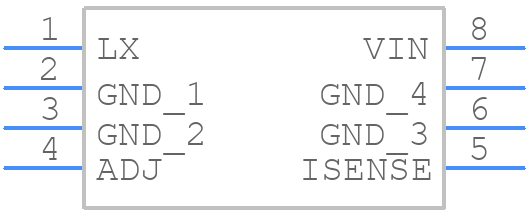

Use the download button to access the ZXLD1366EN8TC schematic symbol, PCB footprint, and 3D model.
