ZXMHC6A07T8TA - Diodes Incorporated

Description: MOSFET H-Bridge N/P-Ch 60V 1.8A/1.5A SM8 Diodes Inc ZXMHC6A07T8TA Quad N/P-channel MOSFET Transistor, 60 V, 8-Pin SM8

Download ZXMHC6A07T8TA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

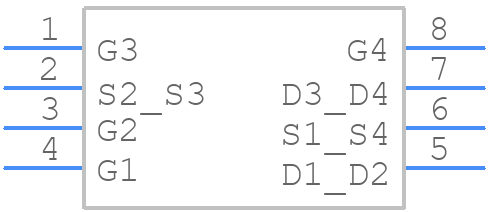

ZXMHC6A07T8TA - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints

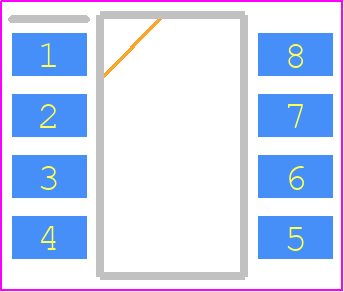

ZXMHC6A07T8TA - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SM-8
click to zoom
3D Models
ZXMHC6A07T8TA - Diodes Incorporated - 3D model - Small Outline Packages - SM-8
click to zoom

ZXMHC6A07T8TA Details

  • Manufacturer Part Number:

    ZXMHC6A07T8TA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Pin Count:

    8

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    1

  • Configuration:

    BRIDGE, 4 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    1.6 A

  • Drain-source On Resistance-Max:

    0.3 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    8.7 pF

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.3 W

  • Pulsed Drain Current-Max (IDM):

    8.4 A

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

ZXMHC6A07T8TA Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the ZXMHC6A07T8TA is a standard SOT23 package with a 1.3mm x 1.3mm body size. A minimum pad size of 0.8mm x 0.8mm is recommended for reliable soldering.
  • To ensure proper biasing, connect the input pin (VIN) to a stable voltage source, and the enable pin (EN) to a logic-level signal. The output pin (VOUT) should be decoupled with a 1uF ceramic capacitor to minimize noise and ripple.
  • The ZXMHC6A07T8TA is rated for operation in ambient temperatures ranging from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures.
  • Yes, the ZXMHC6A07T8TA is AEC-Q100 qualified, making it suitable for automotive and high-reliability applications. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device meets the required reliability standards.
  • To prevent electrostatic discharge (ESD) damage, handle the ZXMHC6A07T8TA with an ESD wrist strap or mat, and ensure the workspace is ESD-protected. Avoid touching the device's pins or handling it in environments with high electrostatic potential.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZXMHC6A07T8TA Overview

Use the download button to access the ZXMHC6A07T8TA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXMHC, or try a keyword search, such as Power Field-Effect Transistors
