A good PCB layout for the ZXMP6A17E6QTA should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the device. A minimum of 2oz copper thickness is recommended.
To ensure proper biasing, the ZXMP6A17E6QTA requires a stable input voltage, a low-impedance output, and a bias resistor (Rb) between the base and emitter. A typical value for Rb is 1kΩ to 10kΩ.
Handle the ZXMP6A17E6QTA by the body, not the leads. Store the device in a dry, cool place, away from direct sunlight and moisture. Avoid bending or flexing the leads, and use anti-static packaging and handling procedures.
Yes, the ZXMP6A17E6QTA is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions, and ensure the device is qualified according to the specific industry standards (e.g., AEC-Q101).
The ZXMP6A17E6QTA has a junction-to-ambient thermal resistance (RθJA) of 62°C/W. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout to minimize thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXMP6A17E6QTA Overview

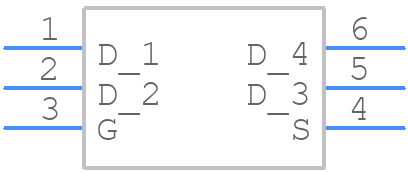

Use the download button to access the ZXMP6A17E6QTA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXMP6,
or try a keyword search, such as Power Field-Effect Transistors
