A good PCB layout for the ZXTR2105F-7 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor is properly sized and placed close to the device. Also, make sure the input capacitor is properly sized and placed close to the input voltage source. Additionally, use a low-ESR output capacitor and ensure the device is operated within its recommended operating conditions.
The maximum ambient temperature for reliable operation of the ZXTR2105F-7 is 85°C. However, it's recommended to derate the device's power dissipation to ensure reliable operation over the entire operating temperature range.
Yes, the ZXTR2105F-7 is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its recommended specifications.
The power dissipation of the ZXTR2105F-7 can be calculated using the formula: Pd = (Vin - Vout) x Iout. Where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Ensure to consider the device's thermal resistance and maximum junction temperature when calculating the power dissipation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXTR2105F-7 Overview

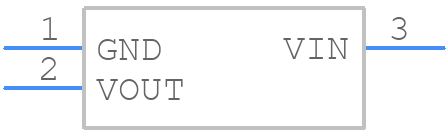

Use the download button to access the ZXTR2105F-7 schematic symbol, PCB footprint, and 3D model.
