A good PCB layout for the ZXTR2105FF-7 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor is within the recommended range (10uF to 22uF), the input capacitor is at least 1uF, and the feedback resistors are within the recommended range (1kΩ to 10kΩ). Also, avoid using long feedback traces and keep the device away from noise sources.
The ZXTR2105FF-7 can operate in an ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.
Yes, the ZXTR2105FF-7 is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
To troubleshoot issues with the ZXTR2105FF-7, start by checking the input voltage, output voltage, and feedback resistors. Ensure that the device is properly soldered and that there are no signs of physical damage. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes or contact Diodes Incorporated's technical support.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ZXTR2105FF-7 Overview

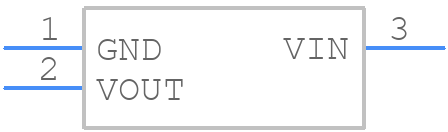

Use the download button to access the ZXTR2105FF-7 schematic symbol, PCB footprint, and 3D model.
