iW1791-06 footprint, schematic symbol and 3D model by Renesas Electronics

iW1791-06 - Renesas Electronics

Description: Supports USB Power Delivery 3.0, QualcommÂ® Quick Chargeâ„¢ 3.0 and 2.0, and Direct Charge Adapters; Companion to the iW657P USB PD 3.0 ControllerThe iW1791 is a 27W output, high-performance AC/DC RapidChargeâ„¢ power supply controller that supports USB Power Delivery (USB PD) 3.0 and other rapid charging protocols. The device uses advanced source charging technology to integrate additional high voltage components and reduce the overall BOM cost in travel adapter applications.It is optimized to work with Re

Download iW1791-06 Model

Schematic
symbols

PCB
footprints

3D
models

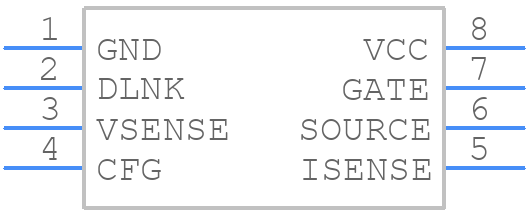

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for iW1791-06
Part Number iW1791-06
Manufacturer Renesas Electronics
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - (8 LD SOIC)-0987
Released Date Aug 5, 2022
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

iW1791-06 Details

Manufacturer Part Number:
iW1791-06
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

iW1791-06 Overview

Use the download button to access the iW1791-06 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like iW179, or try a keyword search, such as Switching Regulator or Controllers
