iW380-10 - Renesas Electronics

Description: Dimming Resolution of 0.0625%â€”Meets DALI Requirements with 0.0625% to 100% RangeThe iW380 high-resolution buck LED driver with Renesas' True DC dimming technology enables high-performance dimmable commercial lighting systems. The device works from a 65V input voltage as a second-stage converter in an AC/DC lighting system or as a stand-alone DC/DC converter. The iW380 accepts both analog (DC) or PWM dimming inputs to provide an exceptional dimming range from 0.0625% to 100% in 0.0625% steps with an integr

Download iW380-10 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this iW380-10 model

Email notifications will be applied after download.

Send part feedback

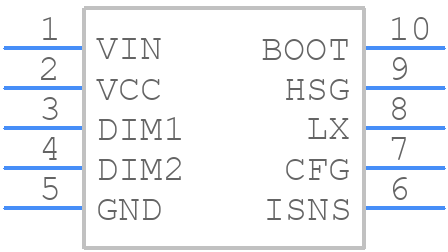

Symbol

iW380-10 - Renesas Electronics - PCB symbol

PCB Footprints

iW380-10 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead SOIC_2022

3D Models

iW380-10 - Renesas Electronics - 3D model - Small Outline Packages - 10-Lead SOIC_2022

Datasheet Download Datasheet
Stock & Prices Price & Stock for iW380-10
Part Number iW380-10
Manufacturer Renesas Electronics
Pin Count 10
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 10-Lead SOIC_2022
Released Date Aug 6, 2022
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

iW380-10 Details

Manufacturer Part Number:
iW380-10
Manufacturer:
Renesas Electronics Corporation
